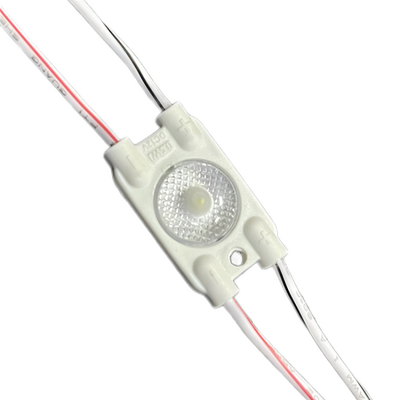

2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
Product Details
| Product Name | 2835 Led Backlight Module | Efficiency | 125lm/W |
|---|---|---|---|
| Led Chain | 20pcs Chain | SDCM | ≤5 |
| Led Color | White, Other Colors, Etc. | Warranty | 5 Years/ 50000 Hours |
| Module Size | 28*15*6.7mm | Application | Led Letter, Led Light Box |
| Highlight | 2835 SMD LED Module,175 Degree Wide Angle LED Module,12V 24V Backlight Module |
||
Product Description
2835 SMD LED Module 1 LED 175 Degree Wide Angle 12V 24V Backlight Sign Light
SignLED Eco Series LED Modules are high-efficiency lighting solutions designed for LED signage and light box applications. With high luminous efficacy of 118–125 lm/W, DC12V/DC24V input options, and a wide 175°+ beam angle, these LED modules ensure uniform brightness and excellent energy efficiency for commercial advertising lighting.
Product Parameters
| Model No. | LED | color | CCT (K) | voltage | power | LM | Effect (LM/W) |
Angle | ||||
| 2835 1led module | SMD2835 | White | 2700~6500K | 12V/24V | 0.50W | 62.5 | 125 | 175° | ||||
| 7000~10000K | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/300pcs) | Warranty | W T(℃) | S T(℃) | IP Level | |||||
| 20pcs | White | Constant voltage/current | 1500 | 5Years Or 50000H |
-25-+60 | -25-+80 | IP65 | |||||
Product Features
• High-Brightness 2835 SMD LED: Delivers bright and uniform illumination with only 0.5W low power consumption.
• Flame-Retardant Housing PVC with PC Lens: Provides excellent durability, impact resistance, and enhanced optical performance.
• IP65 Waterproof Rating: Fully sealed design effectively protects against dust and moisture for reliable outdoor use.
• 175° Wide Beam Angle – Ensures even light distribution, ideal for channel letters, sign boxes, and advertising signage.
• Strong 3M Adhesive Backing – Enables fast, secure, and tool-free installation on most surfaces.
Led module Applications
Backlight led module can be widely used for advertisements.
- Front & backlit LED channel metal letters
- Indoor & outdoor waterproof LED signage
- Illuminated brand LOGO facade signs
- Built-in LED lamp for air conditioner interior
- Vending machine panel backlight fixtures
- Real estate outdoor billboard backlight
FAQ
SignLED provides professional led back lighting products with top quality and good price for all kinds of clients.
- MOQ: 1000pcs after Free Samples test
- Trade term: EXW, FOB, or CIF.
- Shipping terms: Express DHL, Fedex, UPS, Sea shipping.
- Delivery time: 3-5 working days for sample,7-15 days for mass order.
- Warranty: 5-7 years since the date of shipment.
- Payment terms: 30% deposit, 70% before delivery.
- Payment Methods: Bank transfer; PayPal; Western Union. Etc.
