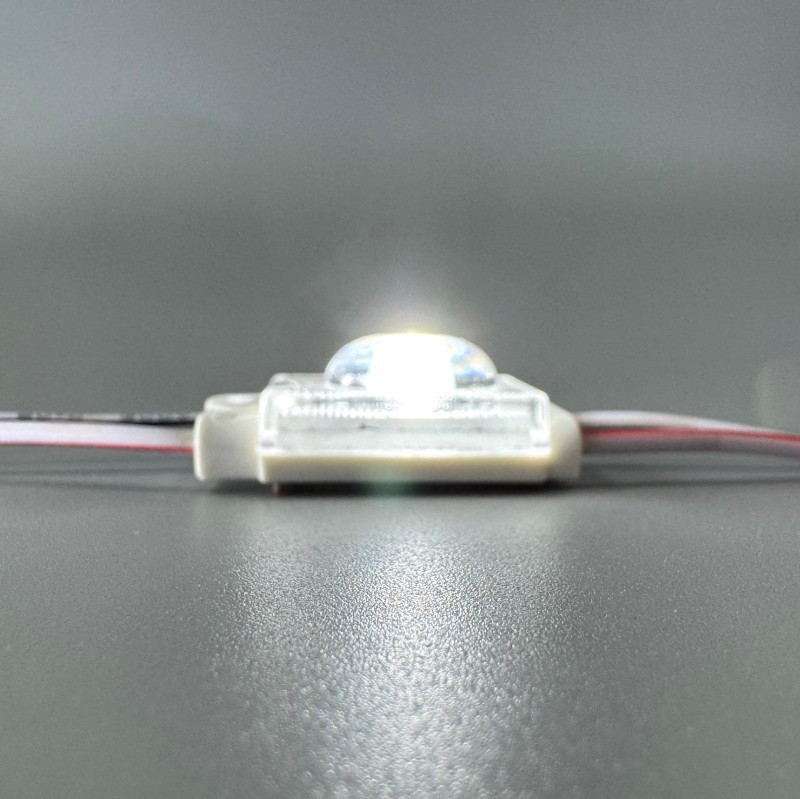

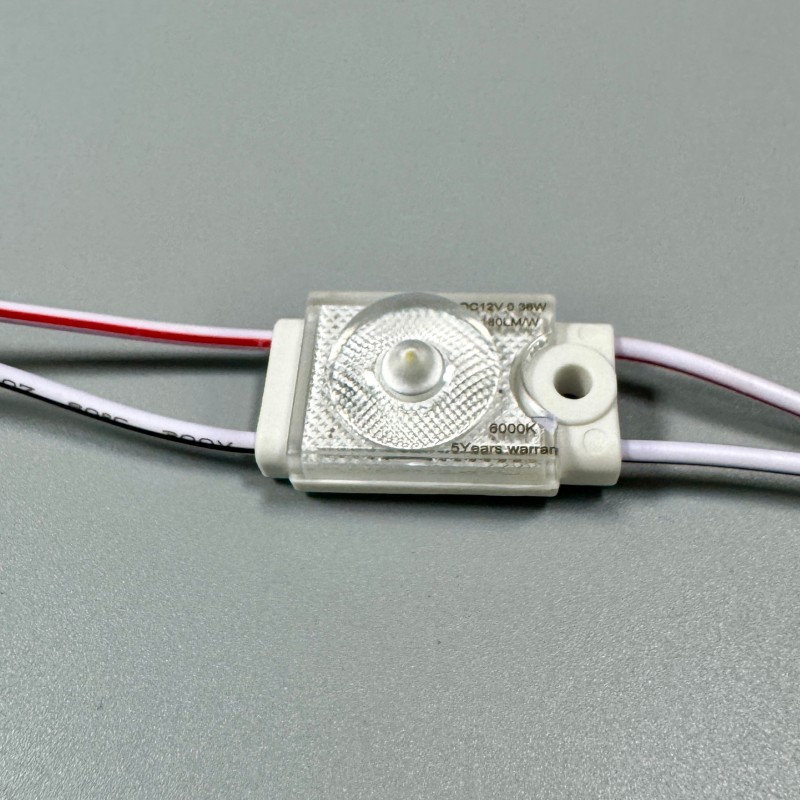

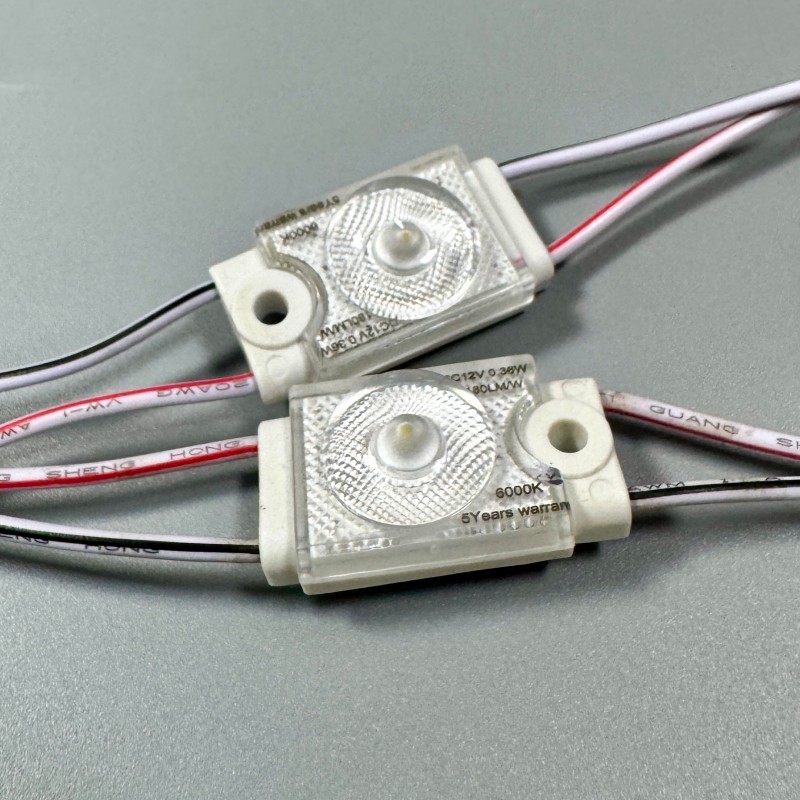

Backlight Module 24V 2835 LEDs for Slim Light Box Construction
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 50pcs/chain |
| Led Color | White 2700k-9000k, Other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 30*16*10mm | Application | Commercial Brand Logo Signage |
| Highlight | 24V 2835 LED Backlight Module,Slim Light Box Module,Signage Backlight LED Module |
||
Product Description
Backlight Module 24V 2835 LEDs for Slim Light Box Construction
Reliable LED backlight module tailored for various standard commercial signage projects.
Reasonable light angle arrangement ensures balanced illumination and clear display effect on acrylic panels.
Standard dimension enables regular arrangement, helping sign factories improve production efficiency.
Product Parameters
| Model No. | LED | color | CCT (K) | voltage | power | LM | Effect (LM/W) | Angle | ||||
| SINO2-MFR031 | SMD2835 | White | 2700~9000K | 12V/24V | 0.36W | 65 | 180 | 170° | ||||
| other colors | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/50pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 50pcs | White | Constant voltage/current | 375 | 5Years Or 50000H | -25-+60 | -25+80 | IP67 | |||||
Product Features
Consistent Lighting Output: Stable luminous performance delivers uniform visual effect for brand displays.
Simple Installation Process: Pre-wired terminals support quick connection and reduce assembly labor time.
Strong Versatility: Widely compatible with different types of channel letters and lightbox structures.
Led Module Applications
Chain Convenience Store Signs
Fast Food Restaurant Logos
Small Community Advertising Light Boxes
FAQ
Q: Is this module suitable for 24-hour continuous lighting?
A: It supports long-time operation under matched power supply and good heat dissipation environment.
Q: Can waterproof treatment be added to non-waterproof modules?
A: Self-sealing modification is not recommended; directly select original waterproof version for outdoor usage.
Q: What factors should be considered when arranging module spacing?
A: Cabinet depth, acrylic diffusion performance and target brightness are key reference standards.
