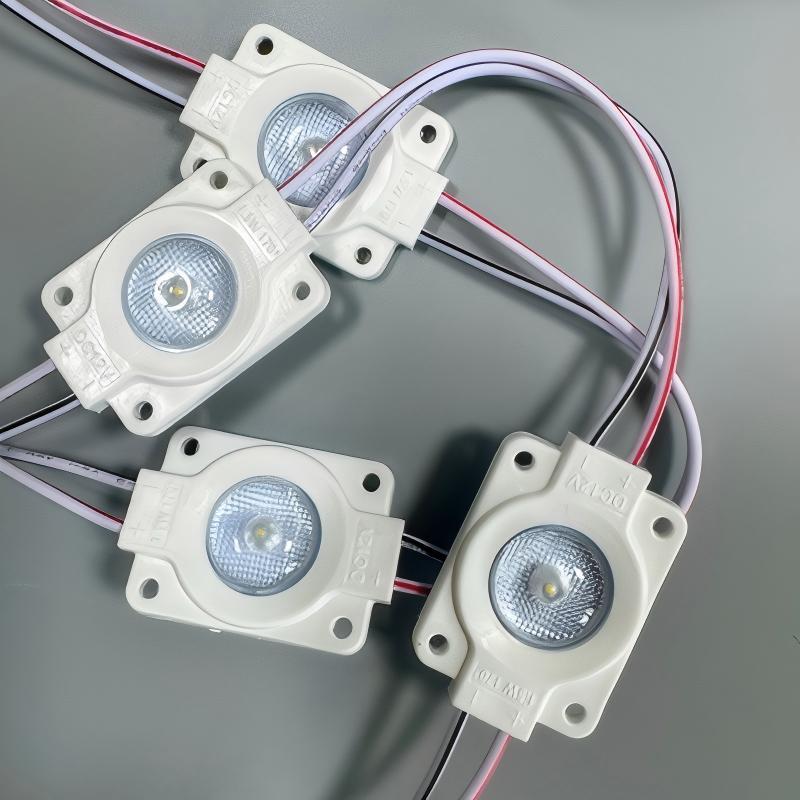

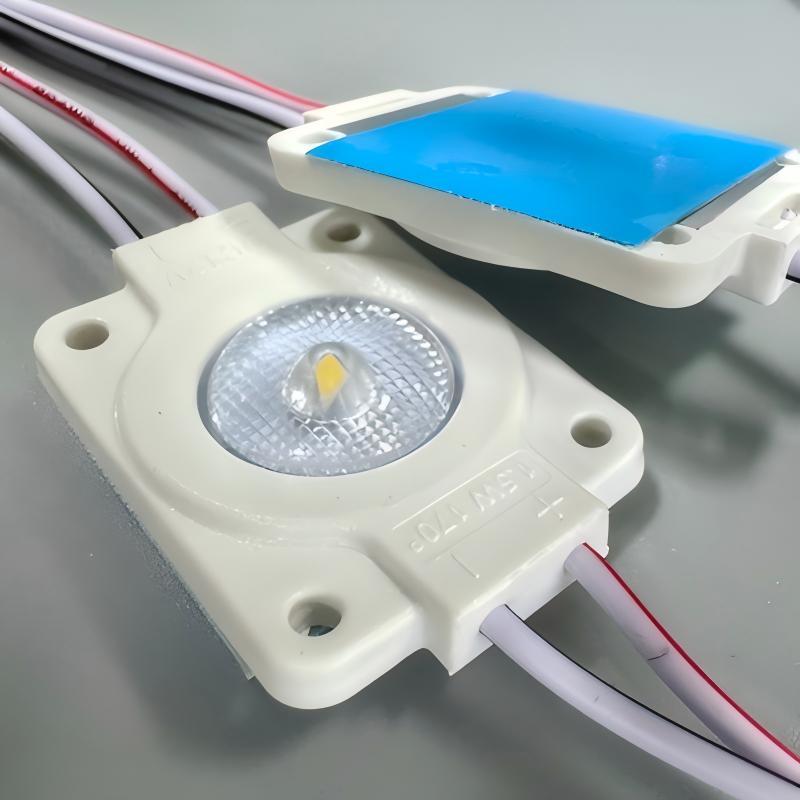

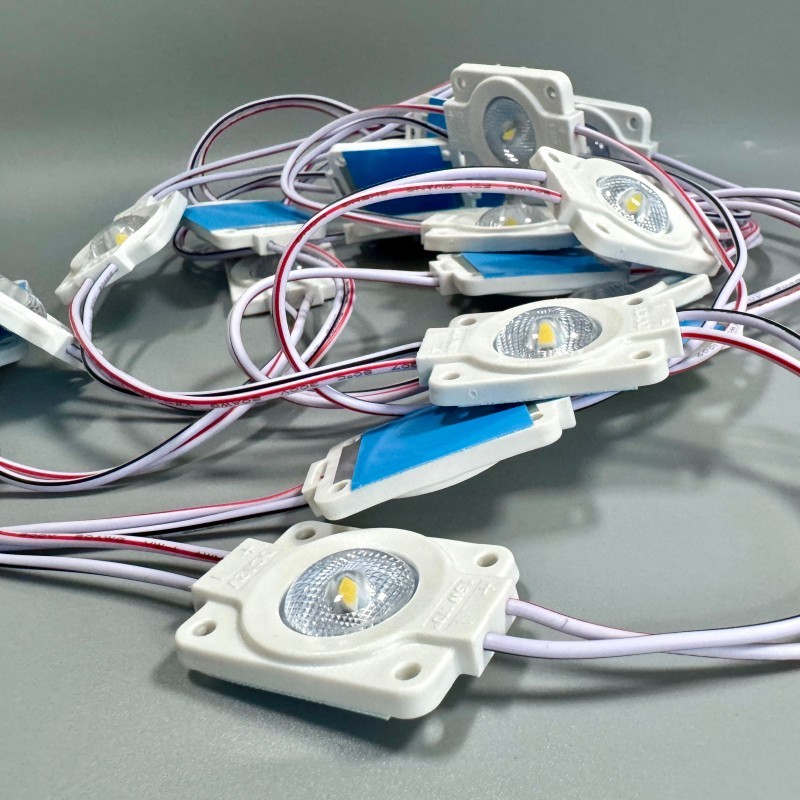

Uniform Light Module 170° Beam Angle for Cabinet Interiors
Product Details
| Product Name | LED Injection Module | Led Chip | SMD3030 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs Chain |
| Led Color | Single White, Dual CCT | Brand Logo | Free Cost Logo |
| Module Size | 38.5*26*7.2mm | Application | Custom Logo Lighting Solutions |
| Highlight | Uniform Light Module,170 Degree Backlight LED Module,LED Module for Cabinet Interior |
||
Product Description
Uniform Light Module 170° Beam Angle for Cabinet Interiors
Designed for commercial sign fabrication, this LED module offers steady luminous performance for backlit logos and advertising cabinets.
Precise optical arrangement helps balance brightness and effectively avoid visible bright spots on acrylic panels.
Compact outline allows flexible arrangement to fit custom-shaped signs and different installation depths.
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| SN-MFF103 | SMD3030 | White | 2700~9000K | 12V/24V | 1.5W | 180 | 120 | 170° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant voltage | 400 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Product Features
Waterproof Optional Structure: Selectable IP rated version meets outdoor rainy and humid working environments.
Low Power Consumption: Energy-efficient LED chip cuts operational cost for long-time continuous lighting.
Convenient Connection Method: Standard wiring design simplifies on-site assembly and circuit arrangement.
Led Module Applications
Gas Station Price Signs
Bank Outdoor Logos
Supermarket Entrance Signage
FAQ
Q: What IP rating do I need for outdoor exposed installation?
A: IP65 or higher waterproof grade is recommended for modules directly exposed to outside weather.
Q: Will LED brightness decay quickly in high temperature?
A: Proper heat dissipation and matched power supply can effectively slow down luminous attenuation.
Q: Can I mix different batches of modules in one sign project?
A: It is better to use modules from the same production batch to guarantee consistent color and brightness.
