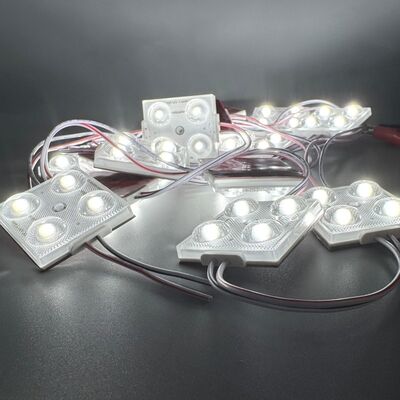

High Power LED Module 1.44W 24V for Deep Installation Areas
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 30pcs Chain |
| Led Color | White 2700k-9000k, Other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 45*38*10mm | Application | Deep Installation Areas |
| Highlight | High Power LED Module,1.44W 24V Sign Module,LED Module for Deep Installation |
||
Product Description
High Power LED Module 1.44W 24V for Deep Installation Areas
LED backlight module built to fulfill general commercial signage demands with reliable overall performance.
Precision light diffusion delivers even illumination and avoids prominent hotspots on diffuser panels.
Compact outline allows flexible arrangement for both regular letter signs and customized lightboxes.
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| SINO4-MFR034 | SMD2835 | White | 2700~9000K | 12V/24V | 1.44W | 259.2 | 180 | 170° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/30pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 30pcs | White | Constant voltage | 330 | 5Years Or 50000H | -25-+60 | -25+80 | IP67 | |||||
Product Features
Uniform Light Output: Balanced beam angle ensures smooth lighting across signage surface.
Secure Internal Wiring: Stable connection reduces risk of contact failure during long service time.
Simple Assembly Operation: Pre-terminated wires streamline production workflow for sign factories.
Led Module Applications
Barbershop Illuminated Logos
Snack Store Front Signage
Retail Kiosk Lighted Displays
FAQ
Q: How to avoid polarity mistakes during installation?
Q: What affects the maximum number of modules on one circuit?
Q: Is ventilation necessary inside light boxes?
A: Distinguish positive and negative leads and follow the marking on each module.
A: Wire gauge, cable length and power supply rated load are decisive factors.
A: Proper air circulation helps control temperature and extend LED working life.
