5050 LED Strip DC24V 60LEDs/m Flexible LED Strip for Commercial Lighting
| Place of Origin | ShenZhen, China |
|---|---|
| Brand Name | SignLED |
| Certification | CE ROHS |
| Model Number | SN-RAX060A/C |
| Minimum Order Quantity | 1000 metres |
| Price | 1.41-1.65USD/Metre |
| Packaging Details | 250 metres/carton |
| Delivery Time | 5-15 working days |
| Payment Terms | T/T,Western Union,Paypal,L/C |
| Supply Ability | 10000 metres/day |
Product Details
| Product Name | 5050 LED Strips | Led Chip | 5050 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Voltage | 12V/24V |
| Led Color | Red | Power | 12W/M |
| PCB Width | 8mm,10mm | Application | Commercial Lighting |
| Highlight | 5050 SMD 60LEDs/m LED Strip,DC24V Commercial LED Tape,Flexible 5050 Strip Lighting |
||
Product Description

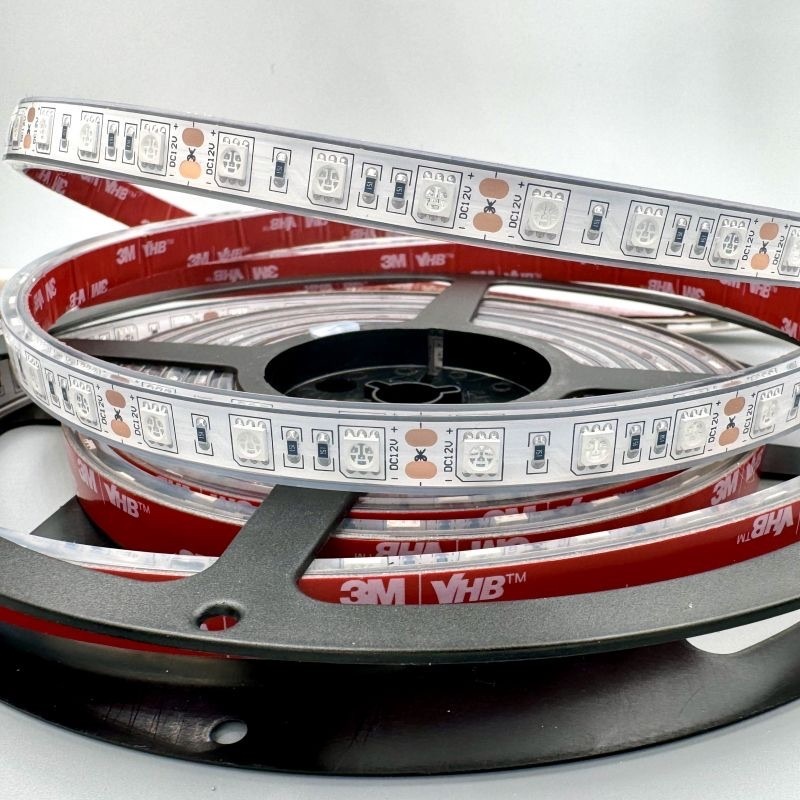

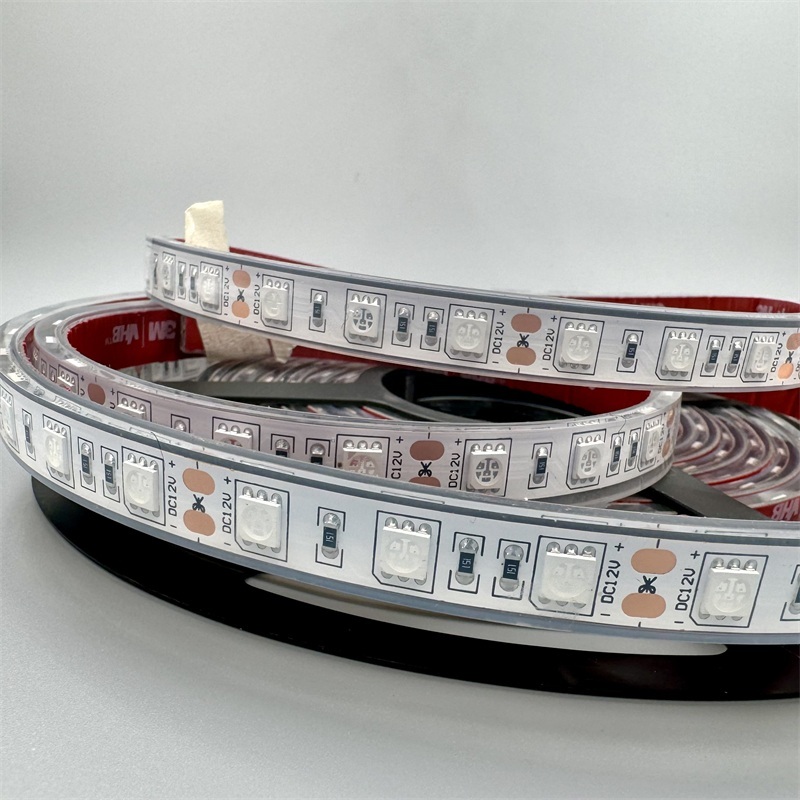

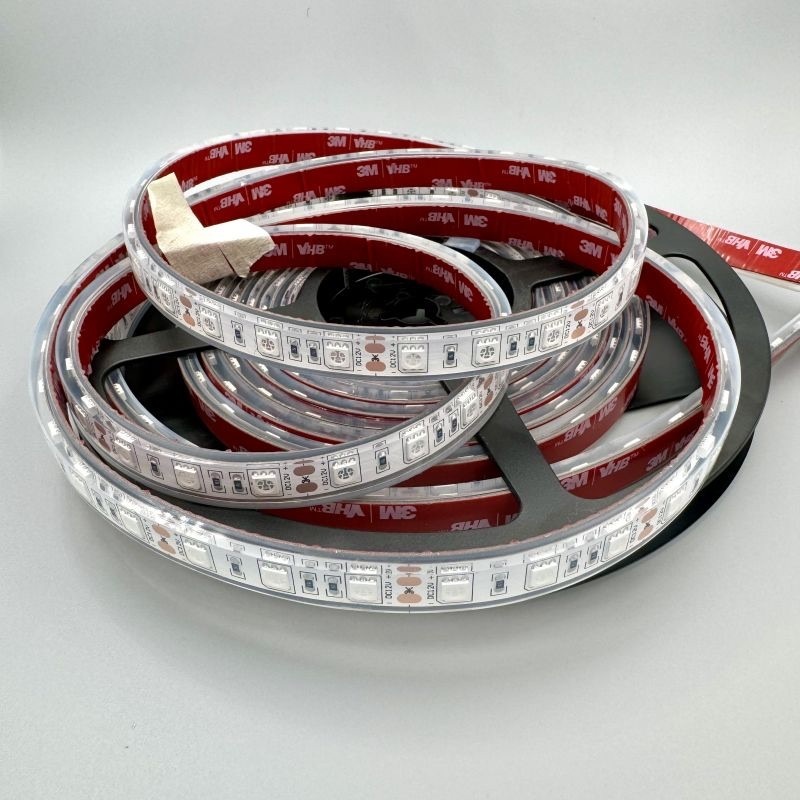

5050 LED Strip DC24V 60LEDs/m Flexible LED Strip for Commercial Lighting
- DC12V/24V low voltage, safe for commercial lighting
- Single RGB solid color option, rich monochrome light effects
- 60pcs 5050 LEDs per meter, 1440LM/m high brightness
- Multiple IP grades: IP20 / IP65 / IP67 to match different scenes
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | CRI | Effect (LM/M) | PCB Width | ||||
|
SN-RAX060A/C
|
5050 | Red | / | 12V/24V | 12W/M | ≥80 | 560LM/M | 8mm | ||||
| / | ||||||||||||
| LED Density | Copper Thickness | Drive Method | Cuttable | Warranty | SDCM | Roll | IP Level | |||||
| 60LEDs/M |
2oz |
Constant Voltage | 50mm/100mm | 5Years Or 50000H | ≤5 | 5M/Roll | IP67 | |||||
Product Features
- 2oz thick 10mm PCB, stable heat dissipation & consistent brightness
- Multiple static RGB color options for LED strip decorative lighting
- Cuttable every 50/100mm, flexible layout for custom projects
- CE certified, 5 years warranty, long stable service life
Application
- Commercial building facade contour lighting
- Architectural exterior linear lighting
- Signage letters & light box edge lighting
- Retail storefront outline lighting
- Landscape decorative linear lighting
- Exhibition & display structural lighting
FAQ
Q1: What is the voltage of this SMD5050 LED Tape Light?
A: This LED tape light operates on DC24V constant voltage power supply, providing stable performance and reliable lighting output.
Q2: How many LEDs are installed per meter?
A: This model uses SMD5050 LED chips with 60 LEDs per meter, delivering bright and uniform illumination.
Q3: Can this LED tape light be cut into different lengths?
A: Yes, it can be cut at the marked cutting points according to installation requirements without affecting the remaining LED sections.
