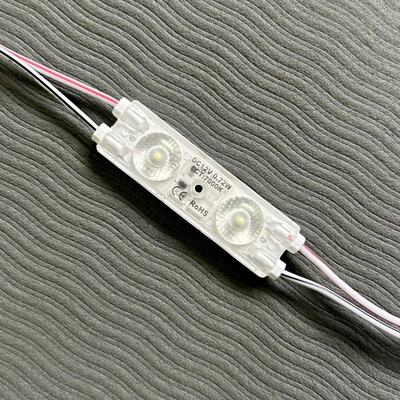

Ultra Bright Dimmable LED Module 2 LEDs 170 Degree Wide Angle For Signage Light Box
Product Details
| Product Name | 0.8W Led Module | Voltage | DC12V |
|---|---|---|---|
| Led Chain | 20pcs Chain | Lumen | 104LM |
| Led Color | White | Lens | 170degrees |
| Dimension | 55*16*7.5mm | IP Level | IP65 |
| Highlight | Ultra Bright Dimmable LED Module,2LEDs 170 Degree LED Module,2 LEDs Dimmable LED Module For Signage |
||
Product Description
Ultra Bright LED Module 2 LEDs 170° Wide Angle Dimmable for Signage Light Box
These high-brightness LED modules feature an ultra-wide 170° beam angle, providing uniform illumination over large areas even with compact module sizes. Designed for long-term performance, they offer extremely low lumen depreciation and a lifespan of up to 50,000 hours, delivering consistent and reliable brightness over time.
Product Parameters
| Model No. | LED | color | CCT (K) | voltage | power | LM | Effect (LM/W) |
Angle | ||||
| 2led module | SMD2835 | White | 2700~6500K | DC12V | 0.80 | 104 | 130 | 170° | ||||
| 7000~10000K | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/100pcs) | Warranty | W T(℃) | S T(℃) | IP Level | |||||
| 20pcs | White | Constant voltage/current | 750 | 5Years Or 50000H |
-25-+60 | -25-+80 | IP65 | |||||
Product Feature
- 170° wide beam angle lens with high efficiency and excellent light uniformity
- High luminous efficacy, low power consumption, and even light distribution
- High color rendering index (CRI) for accurate and natural color performance
- Energy-saving design with easy installation
- IP65 waterproof rating for reliable indoor and outdoor use
- 5-year warranty for long-term quality assurance
Led module Applications
Suitable for channel letters and illuminated lightbox signage with a depth range of 80–160 mm for optimal lighting performance.
- FAQ
Q: Can I order LED light samples?
A: Yes, we welcome sample orders for quality testing and evaluation before bulk purchase.
Q: What is the delivery time?
A: Sample orders take 3–5 days. Bulk production typically takes 5–7 days, depending on order quantity.
