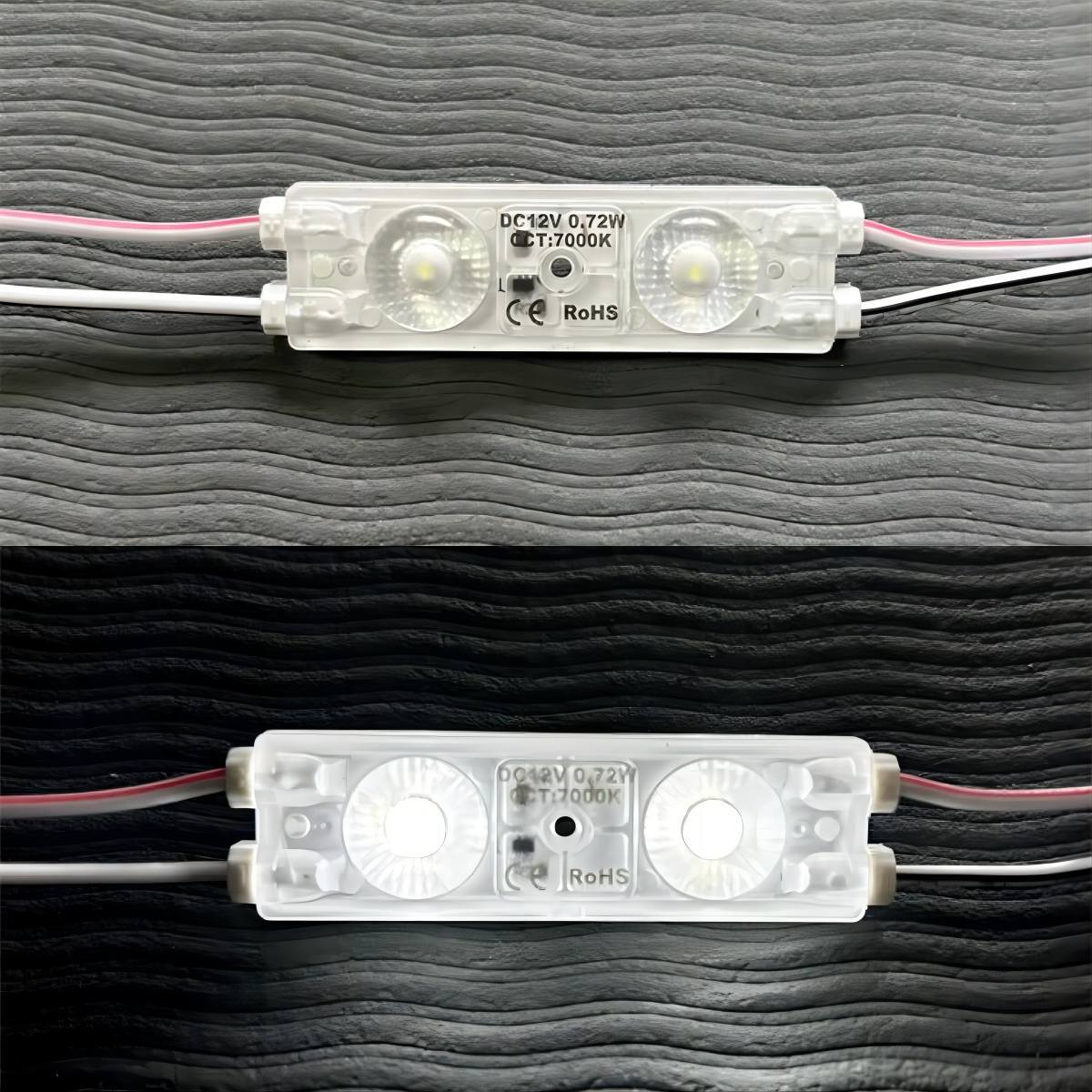

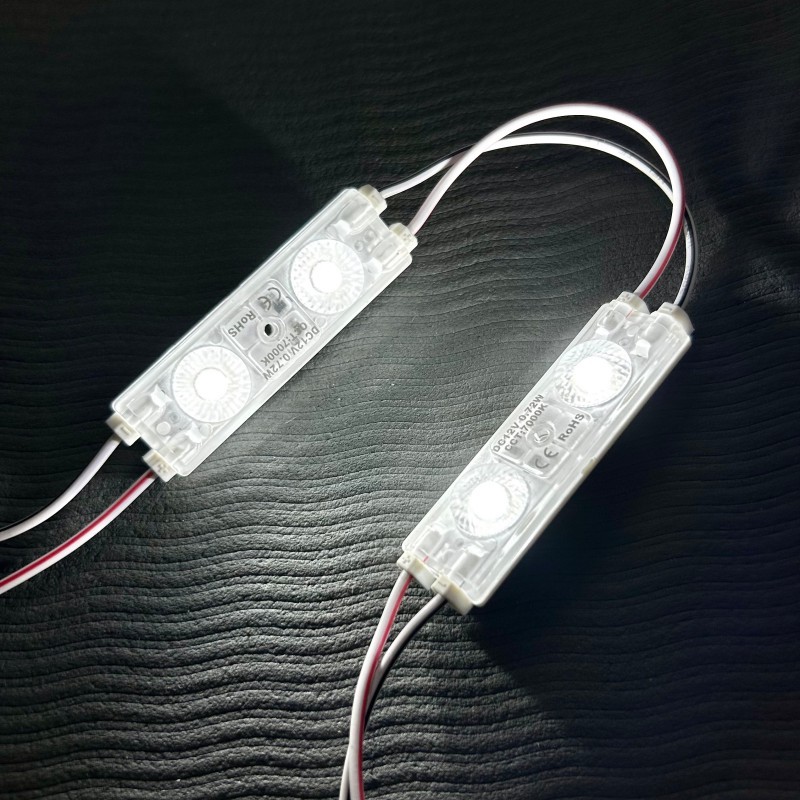

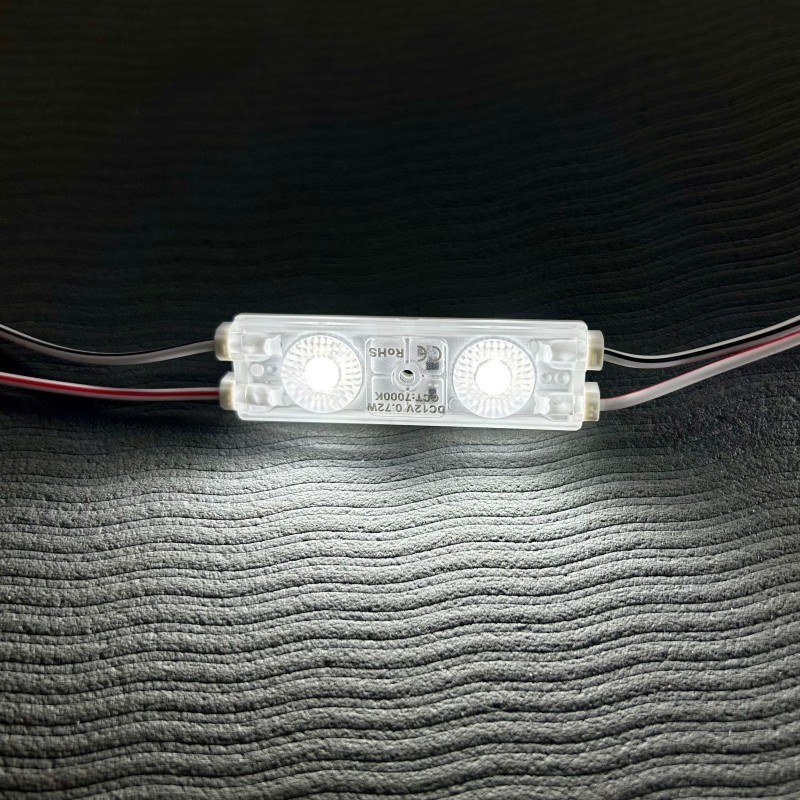

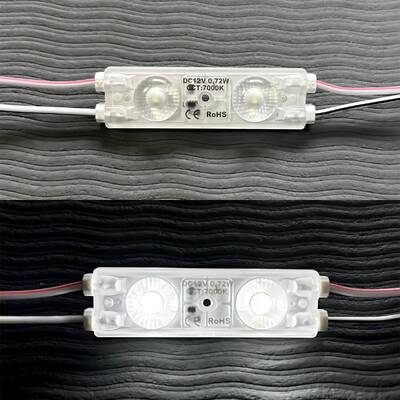

IP65 Waterproof LED Backlight Module 0.72W 94LM For Exhibition Booths
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs Chain |
| Led Color | 3000k-6500k，other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 55*16*7.5mm | Application | Shop Signs |
| Highlight | IP65 Waterproof LED Backlight Module,0.72W 94LM Sign Module,LED Module for Exhibition Booth |
||
Product Description
Professional Light Module 0.72W 94LM for Exhibition Booths
Developed for mass sign production, this LED module supplies steady backlight for channel letters and advertising light cabinets.
Optimized light projection reduces uneven illumination and achieves clean visual effects on acrylic face panels.
Standard dimension design facilitates regular arrangement and improves installation efficiency for sign fabricators.
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| Tino2-MFR074 | SMD2835 | White | 2700~9000K | 12V/24V | 0.72W | 94 | 130 | 170° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant Voltage | 150 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Product Features
Consistent Light Output: Strict chip sorting ensures similar brightness among modules within the same batch.
Flexible Power Matching: Works well with widely used 12V and 24V signage driving power supplies.
Versatile Mounting Method: Allows adhesive or screw fixing to adapt different sign production workflows.
Led Module Applications
Furniture Shop Illuminated Signs
Barbershop Storefront Logos
Convenience Store Light Boxes
FAQ
Q: Why do some modules show different brightness after installation?
A: Chip bin difference, inconsistent voltage supply and poor heat dissipation are common influencing factors.
Q: How many modules can be linked in one single circuit?
A: The maximum connection quantity relies on wire length and power supply load capacity.
Q: Is regular maintenance needed for installed LED modules?
A: Keep the interior of signs free from heavy dust accumulation to maintain long-term lighting performance.
