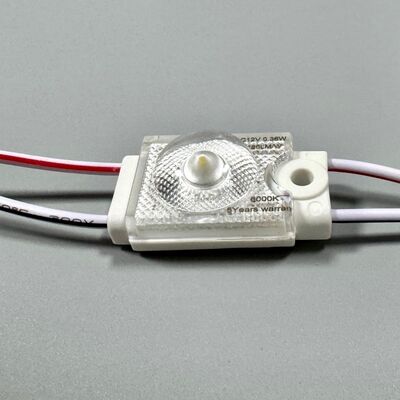

Outdoor Rated Led Light Modules For Signs , 2835SMD 180LM Backlight Module For Fabricators
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 50pcs/chain |
| Led Color | White 2700k-9000k, Other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 30*16*10mm | Application | Commercial Brand Logo Signage |
| Highlight | Outdoor Rated Led Light Modules,2835 SMD 180LM Sign LED Module,180LM LED Module for Fabricators |
||
Product Description
High Performance Light Module 2835 SMD 180LM for Fabricators
Premium LED backlight module built to achieve even and gentle illumination for high-end brand signage.
Carefully optimized light angle avoids concentrated bright spots, presenting exquisite visual effects on diffused acrylic panels.
Precise dimensional control facilitates neat layout and simplifies construction procedures for sign manufacturers.
Product Parameters
| Model No. | LED | color | CCT (K) | voltage | power | LM | Effect (LM/W) | Angle | ||||
| SINO2-MFR031 | SMD2835 | White | 2700~9000K | 12V/24V | 0.36W | 65 | 180 | 170° | ||||
| other colors | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/50pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 50pcs | White | Constant voltage/current | 375 | 5Years Or 50000H | -25-+60 | -25+80 | IP67 | |||||
Product Features
Fine Light Uniformity: Minimize brightness difference across the whole light box surface.
Premium Raw Material Adoption: Effectively suppress luminous decay under long continuous operation.
Optional Custom Wire Length: Flexible cable length to satisfy diverse project wiring layouts.
Led Module Applications
Luxury Beauty Salon Illuminated Logos
High-End Tea Boutique Signboards
Design Studio Storefront Light Letters
FAQ
Q: How to get smoother lighting performance?
A: Reasonably control installation depth and select qualified diffusing acrylic sheets.
Q: Can custom cable lengths be produced?
A: Custom wire length is available subject to minimum order requirements.
Q: What will cause partial dim lighting after installation?
A: Excessive voltage drop, loose wiring connections or overload of power supply are common causes.
