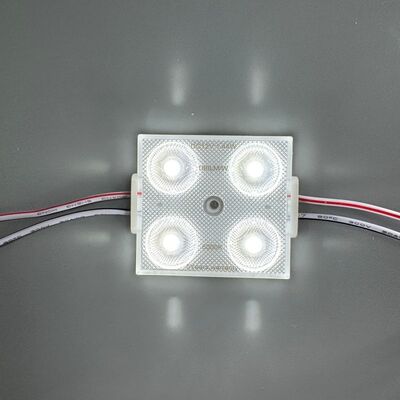

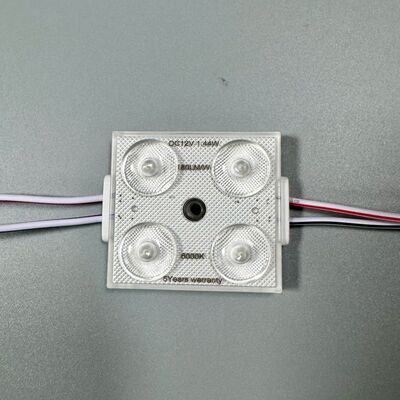

2835 LED Injection Module 12V 180lm/W Sign Lighting Modules For Letter Illumination
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 30pcs Chain |
| Led Color | White 2700k-9000k, Other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 45*38*10mm | Application | Letter Illumination |
| Highlight | 2835 LED Injection Module 12V,12V 180LM/W Letter LED Module,180lm/W LED Module for Letter Illumination |
||
Product Description
2835 Injection LED Module 12V 180lm/w for Letter Illumination
High-performance LED backlight module ideal for medium and large format backlit signage.
Advanced optical design realizes seamless lighting effect and effectively suppresses visible bright spots on acrylic.
Precision manufacturing ensures uniform dimension, supporting neat and orderly layout inside light cabinets.
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| SINO4-MFR034 | SMD2835 | White | 2700~9000K | 12V/24V | 1.44W | 259.2 | 180 | 170° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/30pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 30pcs | White | Constant voltage | 330 | 5Years Or 50000H | -25-+60 | -25+80 | IP67 | |||||
Product Features
Outstanding Light Consistency: Rigorous binning process minimizes brightness variance within batches.
Stable Driving Scheme: Restrain current surge at startup to protect LED chips.
Flexible Layout Solution: Suitable for dense arrangement as well as wide-spacing installation schemes.
Led Module Applications
Shopping Mall Directory Signs
Restaurant Outdoor Backlit Logos
Pharmacy Storefront Illuminated Lettering
FAQ
Q: What will cause color difference between modules?
Q: Is it okay to mix old and newly purchased modules in one sign?
Q: How to reduce startup current impact?
A: Different production batches without unified bin selection are the main cause.
A: Not recommended; better to adopt modules from the same batch for consistent visual effect.
A: Select power supply with soft start function for long-term protection.
