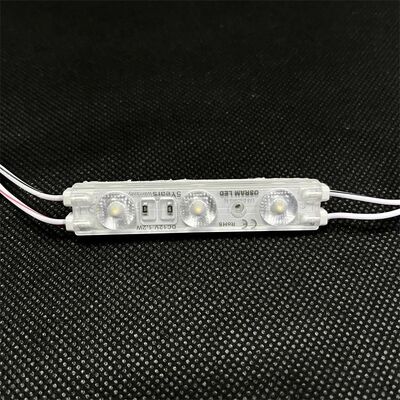

12V 1.2W LED Backlight Module 170 Degrees For Hanging Light Boxes And Signage
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs/chain |
| Led Color | White 2700k-9000k, Other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 80.5*15.5*7.5mm | Application | Hanging Light Boxes |
| Highlight | 12V 1.2W LED Backlight Module,1.2W LED Backlight Module For Signage,Hanging Light Box LED Module |
||
Product Description
12V Signage Modules 1.2W 170 Degrees for Hanging Light Boxes
The LED module provides stable lighting output for channel letters, signage cabinets, and promotional displays.
Developed for advertising illumination systems, this module offers a compact solution for various commercial applications.
This LED module enhances sign visibility through optimized lighting performance and reliable operating characteristics.
Product Parameters
| Model No. | LED | color | CCT (K) | voltage | power | LM | Effect (LM/W) | Angle | ||||
| Tino3-MFR075 | SMD2835 | White | 2700~9000K | 12V/24V | 1.2W | 145 | 120 | 170° | ||||
| other colors | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant voltage/current | 270 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Product Features
Durable Outdoor Design: Supports reliable performance in outdoor advertising environments.
Compact LED Arrangement: Allows effective lighting in limited installation spaces.
Professional Light Box Application: Designed for smooth illumination inside display structures.
Led Module Applications
Large Format Advertising Signs
Static Advertising Boards
Digital Advertising Frame Lighting
FAQ
Q: What is the recommended module spacing for sign installation?
A: The spacing depends on module brightness, beam angle, sign depth, and required lighting uniformity.
Q: How deep should a channel letter be for LED modules?
A: The recommended depth depends on the module optical design and lighting requirements of the sign.
Q: Can LED modules be installed behind acrylic panels?
A: Yes, LED modules can be used for backlighting acrylic panels and illuminated displays.
