High Brightness 180LM 1.5W SMD2835 LED Backlight Module with IP65 for Signage Backlighting

  • High Brightness 180LM 1.5W SMD2835 LED Backlight Module with IP65 for Signage Backlighting
  • High Brightness 180LM 1.5W SMD2835 LED Backlight Module with IP65 for Signage Backlighting
  • High Brightness 180LM 1.5W SMD2835 LED Backlight Module with IP65 for Signage Backlighting
Place of Origin ShenZhen，China
Brand Name SignLED
Certification CE ROHS
Model Number Epro-MFR053
Minimum Order Quantity 1000pcs
Price 0.15-0.18USD/Piece
Packaging Details 1500pcs/carton
Delivery Time 5-15 working days
Payment Terms T/T,Western Union,Paypal,L/C
Supply Ability 50000pcs/day
Product Details
Product Name LED Module Led Chip SMD2835
Warranty 5 Years/ 50000 Hours Led Color White 2700k-9000k, Other Colors.
Brand Logo Free Cost Logo Module Size 69*16*6.7mm
Application Hotel Exterior Signs Feature High Brightness
Highlight

High Lumen LED backlight module

,

SMD2835 LED injection module

,

1.5W signage backlighting module
Leave a Message
Product Description

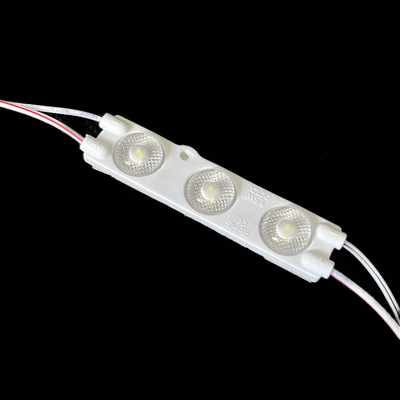

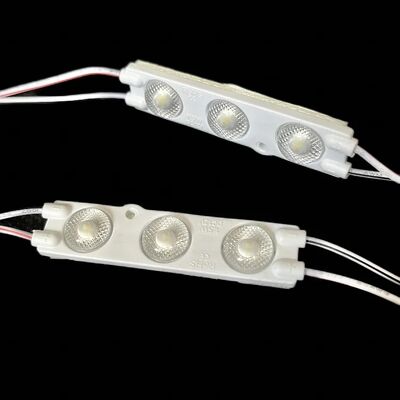

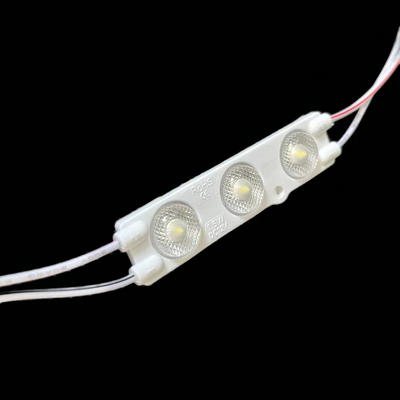

High Lumen 180LM SMD2835 LED Injection Module 1.5W for Signage Backlighting

  1. Powered by SMD2835 chips, delivering 180 lumens at just 1.5W. It offers superior brightness for channel letters while keeping energy costs low.

Designed for smooth backlighting on large surfaces. It eliminates dark spots to ensure your logos and letters look consistent and professional from every angle.

Adapts easily to complex sign shapes and tight spaces. The flexible design simplifies the fabrication process, saving you time during assembly.

Designed specifically for long-term, stable use in retail and commercial sectors. It provides consistent visual effects, ensuring your brand display remains attractive, 24 hours a day.


Product Parameters:


 Model No.     LED         color     CCT (K) voltage    power  LM   Effect (LM/W)  Angle
Epro-MFR053        SMD2835        White  2700~9000K 12V/24V     1.5W  180    120  175°
 other colors
  Connection       Qty Shell color   Drive method     Weight         (g/20pcs)          Warranty W T(℃)  ST(℃)   IP Level
    20pcs     White      Constant voltage/current       220  5Years Or 50000H -25-+60 -25+80   IP65


Product Features:


Delivers 180LM at just 1.5W with stable output, ensuring reliable 24/7 performance and low energy costs.


Adapts easily to complex sign shapes with waterproof protection, making it ideal for diverse outdoor commercial projects.


Optimized LED arrangement ensures smooth, consistent backlighting across large surfaces, eliminating dark spots for a premium look.



High Brightness 180LM 1.5W SMD2835 LED Backlight Module with IP65 for Signage Backlighting


Led Module Applications:


Transit Advertising Displays


Poster Light Boxes


Versatile Commercial Signage


High Brightness 180LM 1.5W SMD2835 LED Backlight Module with IP65 for Signage Backlighting



FAQ:


 Q:How should the LED module be fixed inside the signage?

  A: They can usually be repaired using adhesives, screws, brackets, or other fixing methods.


 Q: What maintenance work do LED modules require?
 A: To ensure their long-term stable operation, it is recommended to regularly check the connection parts and the power supply system.


 Q: Can this solution handle oversized advertising projects?
 A: Definitely. The modules are designed to be daisy-chained in long series, making them ideal for illuminating large-format light boxes.
