12V LED Backlight Module with 180lm/W Efficiency and 175 Degrees Beam Angle for Sign Lighting
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 30pcs Chain |
| Led Color | White 2700k-9000k, Other Colors | Brand Logo | Free Cost Logo |
| Module Size | 45*38*10mm | Application | Letter Illumination |
| Highlight | 12V LED backlight module,2835 backlight module 180lm/W,175-degree LED sign light |
||
Product Description

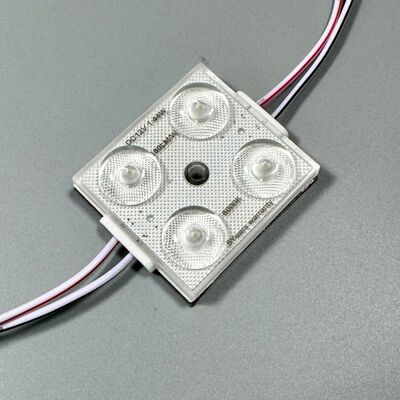

4leds Sign Light Module 2835 Back Light Module 12V 1.44W 180lm/W 175 Degrees
SONA series high-efficiency module designed for high-end projects, featuring 170-180lm/w output and DC12V/24V compatibility.

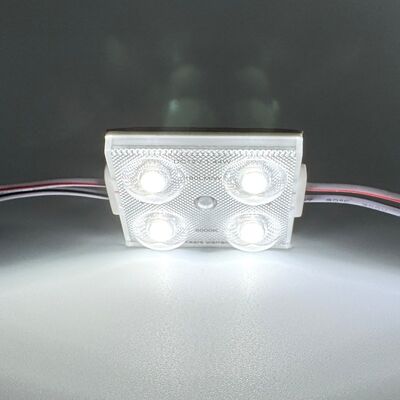

Ultra-wide lighting coverage with a beam angle greater than 175 degrees, available in versatile 1-2-3-4 LEDs configurations.
Most powerful 4leds option delivers superior brightness performance, specifically engineered to meet the demands of premium signage applications.
Product Parameters:
| Model No. | LED | color | CCT (K) | voltage | power | LM | Effect (LM/W) |
Angle | ||||
| MFR033 | SMD2835 | White | 2700~6500K | 12V/24V | 1.08W | 195 | 180 | 175° | ||||
| 7000~10000K | ||||||||||||

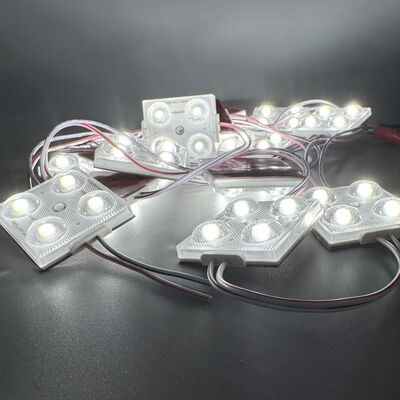

| Connection Qty | Shell color | Drive method | Weight (g/50pcs) | Warranty | W T(℃) | S T(℃) | IP Level | |||||
| 50pcs | White | Constant voltage/current | 500 | 7Years Or 50000H |
-25-+60 | -25-+80 | IP66 | |||||
Product Features:

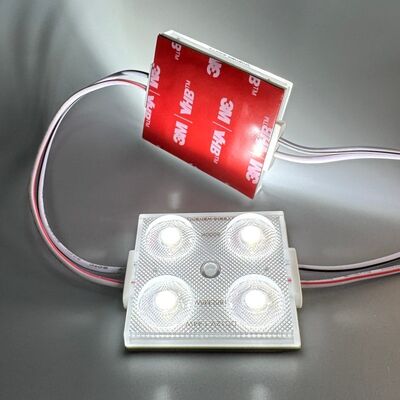

Premium Material Construction: Features 1.5mm Aluminum PCB for superior heat dissipation and high-quality PVC body backed with original 3M VHB tape for secure installation.
High-Efficiency Optical Performance: Equipped with 170-180lm/w LED chips and custom-made 175-degree optic lenses to deliver powerful, wide-angle illumination for high-end projects.
Reliable Electrical Safety: Utilizes AWG#18 UL standard cables and a stable driving scheme to restrain current surges at startup, ensuring long-lasting protection for LED chips.
Led Module Applications:
Shopping Mall Directory Signs
Restaurant Outdoor Backlit Logos
Pharmacy Storefront Illuminated Lettering
FAQ:
Q: What are the available specifications for the SONA Series modules?
A: The modules are available in 1LED, 2LED, 3LED, and 4LED options, supporting both DC12V and DC24V voltage inputs to suit various project requirements.
Q: Is it recommended to mix old and new modules in the same signage?
A: Not recommended. It is better to adopt modules from the same production batch to ensure consistent visual effects and avoid color differences caused by unified bin selection issues.
Q: How can I ensure long-term protection for the LED chips?
A: Select a power supply with a soft start function to reduce startup current impact, which effectively protects the chips and ensures reliable performance.
