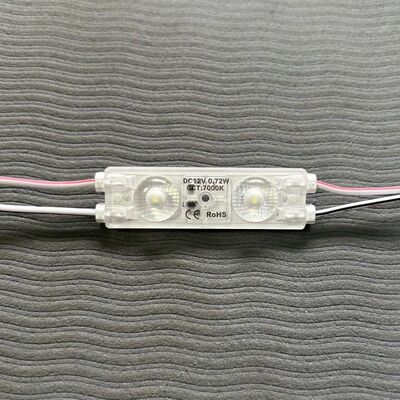

IP65 Waterproof LED Backlight Module 0.72W 94LM with 170° Beam Angle
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs Chain |
| Led Color | 3000k-6500k，other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 55*16*7.5mm | Application | Shop Signs |
| Highlight | IP65 waterproof LED backlight module,0.72W LED backlight module,170° beam angle LED module |
||
Product Description
IP65 Waterproof LED Backlight Module 0.72W 94LM with 170° Beam Angle
Developed for mass sign production, this LED module supplies steady backlight for channel letters and advertising light cabinets. Optimized light projection reduces uneven illumination and achieves clean visual effects on acrylic face panels.
Standard dimension design facilitates regular arrangement and improves installation efficiency for sign fabricators. The compact module sizes allow for flexible layout options while maintaining structural consistency during assembly.
These high-brightness LED modules feature an ultra-wide 170° beam angle, providing uniform illumination over large areas. Designed for long-term performance, they offer extremely low lumen depreciation and a lifespan of up to 50,000 hours, delivering consistent and reliable brightness over time.
Product Features:
Consistent Performance and Compatibility: Strict chip sorting ensures consistent light output and brightness across modules within the same batch. The system offers flexible power matching, working seamlessly with widely used 12V and 24V signage driving power supplies.
Superior Optical Quality: Featuring a 170° wide beam angle lens with a high color rendering index , the module delivers excellent light uniformity and accurate, natural color performance. It achieves high luminous efficacy with low power consumption for even light distribution.
Durability and Versatile Installation: Designed for reliability, the module carries an IP65 waterproof rating suitable for both indoor and outdoor use and comes with a 5-year warranty. It supports versatile mounting methods, allowing for either adhesive or screw fixing to adapt to different sign production workflows.
Product Parameters:
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| Tino2-MFR074 | SMD2835 | White | 2700~9000K | 12V/24V | 0.72W | 94 | 130 | 170° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant Voltage | 150 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Led Module Applications:
Furniture Shop Illuminated Signs
Barbershop Storefront Logos
Convenience Store Light Boxes
FAQ:
Q: What causes uneven lighting in LED modules?
A: Variations in LED chip bins, unstable voltage input, and insufficient heat dissipation are the primary causes.
A: Variations in LED chip bins, unstable voltage input, and insufficient heat dissipation are the primary causes.
Q: How many modules can be connected in a series?
A: The maximum number depends on the wire gauge length and the total load capacity of the power supply.
A: The maximum number depends on the wire gauge length and the total load capacity of the power supply.
Q: Do installed modules require regular cleaning?
A: Yes, preventing heavy dust buildup inside the signage is essential to ensure consistent long-term brightness.
A: Yes, preventing heavy dust buildup inside the signage is essential to ensure consistent long-term brightness.
