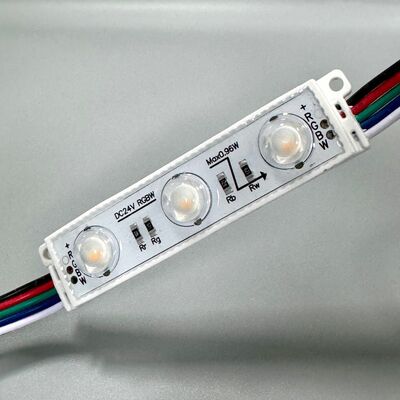

DC24V RGBW LED Backlight Module IP68 165° Wide Angle for Letter Signage

  • DC24V RGBW LED Backlight Module IP68 165° Wide Angle for Letter Signage
  • DC24V RGBW LED Backlight Module IP68 165° Wide Angle for Letter Signage
  • DC24V RGBW LED Backlight Module IP68 165° Wide Angle for Letter Signage
Place of Origin ShenZhen，China
Brand Name SignLED
Certification CE ROHS
Model Number SN-MAD121
Minimum Order Quantity 1000pcs
Price 0.45-0.5USD/Piece
Packaging Details 800pcs/carton
Delivery Time 5-15 working days
Payment Terms T/T,Western Union,Paypal,L/C
Supply Ability 10000pcs/day
Product Details
Product Name LED Module Led Chip SMD5050
Warranty 5 Years/ 50000 Hours Led Chain 20pcs Chain
Led Color RGB Brand Logo Free Cost Logo
Module Size 83*18*9.8mm Application Color Changing Led Letters.
Highlight

DC24V RGBW LED backlight module

,

IP68 waterproof LED backlight module

,

165° wide angle LED backlight
Leave a Message
Product Description

DC24V RGBW LED Backlight Module IP68 165° Wide Angle for Letter Signage


  • RGBW Sign Module delivers seamless RGB color blending and crisp white light output, enabling versatile lighting scenarios for bespoke signage applications.

  • Engineered for DC24V compatibility with consistent chromatic performance and intuitive dimming control, ideal for commercial and architectural installations.

  • Perfectly suited for backlit channel letters, dynamic display panels, and artistic light setups demanding rich color versatility and high visual impac.

Product Parameters:



 Model No.       LED   Color    W/CCT (K) Voltage    Power  LM   Effect (LM/W)  Angle
SN-MAD121  SMD5050    RGBW  2700~9000K 12V/24V    　0.96W  30    120  165°
 Other Colors
 Connection        Qty Shell color  Drive  Method     Weight          (g/20pcs)          Warranty WT(℃)  ST(℃)   IP Level
    20pcs     White Constant Voltage        375  5Years Or 50000H -25-+60 -25+80   IP68



Product Features:


  • Enables dynamic color programming via compatible controllers for tailored lighting sequences.
    Easily create custom lighting effects to match any brand identity or mood, working seamlessly with standard RGBW controllers.

  • Independent RGB and white channels allow expanded creative use across diverse signage and decor setups.
    Features a dedicated white chip for pure, natural white light, while still offering the full RGB spectrum for dynamic displays.

  • Optimized LED architecture ensures consistent luminance and durable operation under continuous use.
    Built for reliability, maintaining uniform brightness and color accuracy over time, even in demanding environments.

  • DC24V RGBW LED Backlight Module IP68 165° Wide Angle for Letter Signage


Led Module Applications:

  • Backlit storefront signage

  • Corporate identity illumination

  • Retail window display accents

DC24V RGBW LED Backlight Module IP68 165° Wide Angle for Letter Signage


FAQ:

  • Q: What controller is required for RGBW modules?
    A: A compatible RGBW controller or control system is needed for color adjustment and effect programming.

  • Q: Can RGBW modules function as standard white lighting?
    A: Yes, the independent white channel provides pure white illumination separate from the RGB colors.

  • Q: Which applications benefit most from RGBW technology?
    A: Projects requiring both dynamic color effects and high-quality functional white light, such as signage and architectural lighting.
