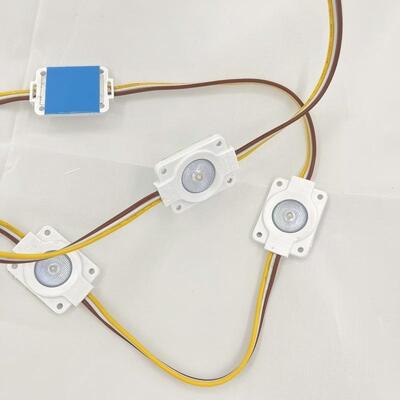

Waterproof 1.5W DC12V LED Module 2700-6500K Tunable White Dimmable Backlight

  • Waterproof 1.5W DC12V LED Module 2700-6500K Tunable White Dimmable Backlight
  • Waterproof 1.5W DC12V LED Module 2700-6500K Tunable White Dimmable Backlight
  • Waterproof 1.5W DC12V LED Module 2700-6500K Tunable White Dimmable Backlight
Place of Origin ShenZhen，China
Brand Name SignLED
Certification CE ROHS
Model Number SN-MFR103
Minimum Order Quantity 1000pcs
Price 0.23-0.28USD/Piece
Packaging Details 1000pcs/carton
Delivery Time 5-15 working days
Payment Terms T/T,Western Union,Paypal,L/C
Supply Ability 5000pcs/day
Product Details
Product Name CCT Led Module Module Size 38.5*26*7.1mm
Led Voltage DC12V/24V Led Power 1.5W
Led Chip 1pcs SMD3030 Led Chain 20pcs Chain
Application Led Light Box Warranty 5 Years/ 30000 Hours
Highlight

Waterproof LED backlight module

,

Dimmable tunable white LED module

,

12V DC LED backlight module
Leave a Message
Product Description

Waterproof 1.5W DC12V LED Module 2700-6500K Tunable White Dimmable Backlight


  • Supports stepless color temperature adjustment from 2700K warm white to 6500K cool white with flexible brightness dimming for multi-scene lighting customization.

  • Rated at 1.5W with an ultra-wide 170° beam angle to ensure broad light coverage and high luminous uniformity without dark zones or visible dot spots.

  • Features a waterproof structure with excellent dust and moisture resistance, ensuring stable long-term operation in humid indoor and semi-outdoor environments.

Product Parameters:



Model No. LED color CCT (K) voltage power LM Effect
(LM/W)		 Angle
MFR103 SMD2835 White 2700~6500K 12V/24V 1.5W 180 120 170°
7000~10000K
Connection Qty Shell color Drive method Weight (g/50pcs) Warranty W T(℃) S T(℃) IP Level
20pcs White Constant voltage/current 375 5Years
Or 30000H		 -25-+60 -25-+80 IP66



Product Features:


    Utilizes premium SMD chips paired with a professional diffused optical structure to deliver soft, glare-free lighting that eliminates harsh hotspots for visual comfort.


Designed with a 3-wire connection system that enables precise control over three distinct color outputs, offering versatile lighting solutions for complex signage requirements.


Engineered for energy efficiency at 1.5W power consumption while maintaining high brightness output, reducing operational costs without compromising illumination performance.


Waterproof 1.5W DC12V LED Module 2700-6500K Tunable White Dimmable Backlight


Led Module Applications:

  • LED channel letters
  • LED light boxes
  • LED brand signage

Waterproof 1.5W DC12V LED Module 2700-6500K Tunable White Dimmable Backlight


FAQ:


    Q1: Can both color temperature and brightness be adjusted?
    A1: Yes, stepless dimming is supported for both brightness and color temperature, allowing smooth transition from 2700K warm white to 6500K cool white.
    Q2: Is this module suitable for outdoor use?
    A2: Yes, the waterproof structure provides excellent resistance to dust and moisture, making it ideal for semi-outdoor signs or humid indoor environments.
    Q3: Does the light produce dark spots or glare?
    A3: No, premium SMD chips and a diffused optical lens with a 170° beam angle ensure uniform, soft illumination without visible dot spots or dark zones.
