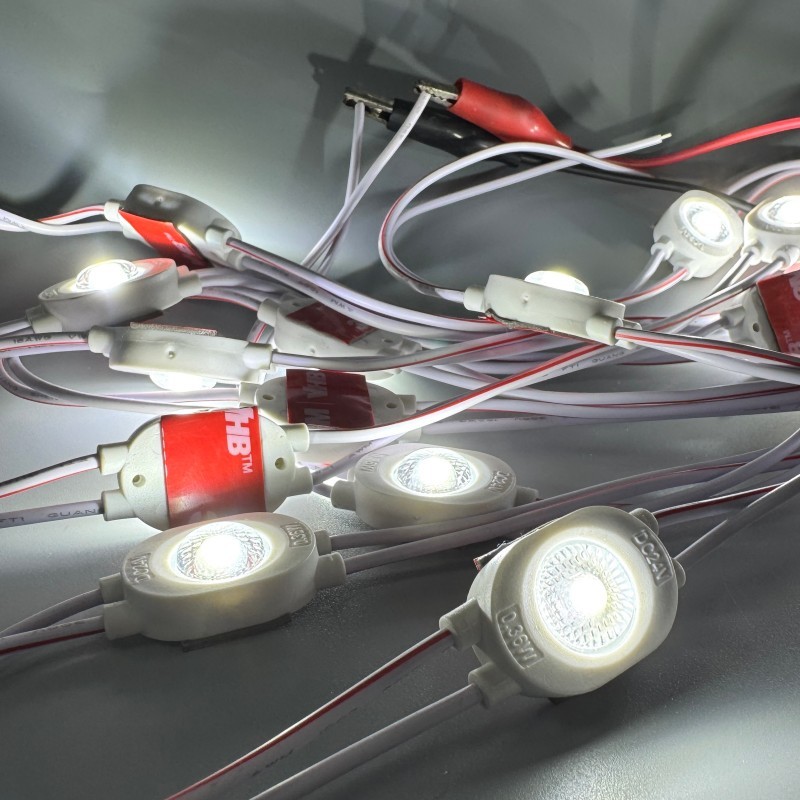

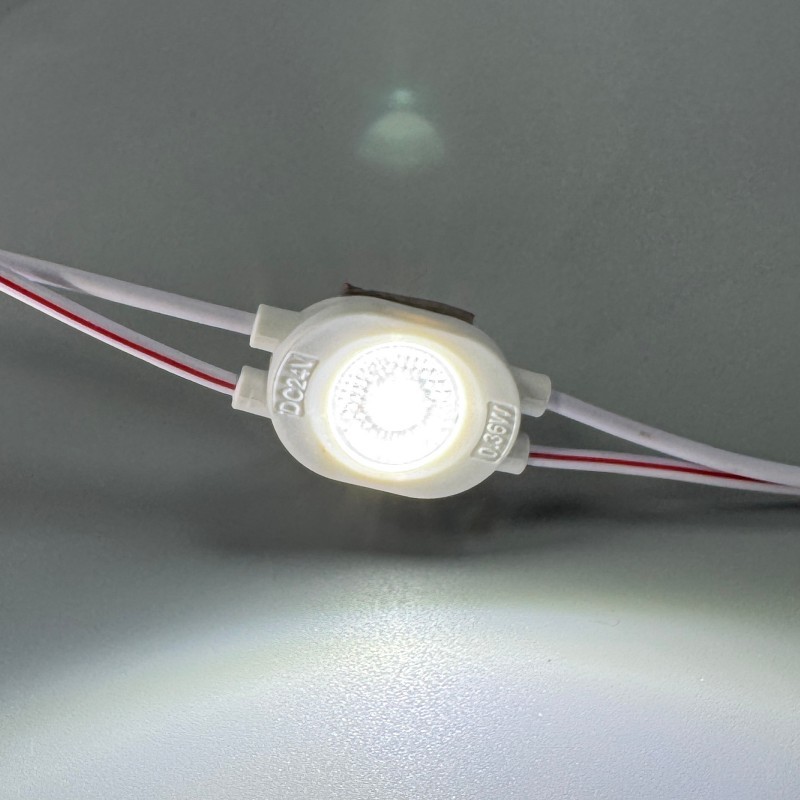

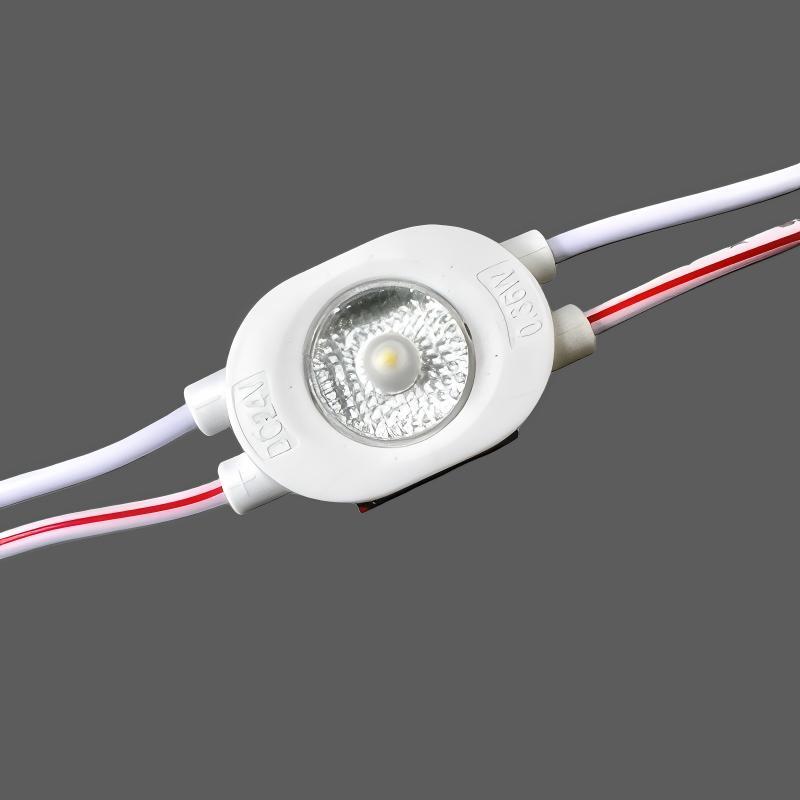

175 Degree Wide Angle SMD2835 LED Module for Backlit Panels IP67 Waterproof
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 50pcs Chain |
| Led Color | White 2700k-9000k | Brand Logo | Free Cost Logo |
| Module Size | 32.5*18*9.5mm | Application | Backlit Logos |
| Highlight | 175 degree wide angle LED module,SMD2835 LED backlight module,IP67 waterproof LED panel light |
||
Product Description
175 Degree Wide Angle SMD2835 LED Module for Backlit Panels IP67 Waterproof
Engineered specifically for high-end commercial signage, this module delivers consistent and reliable illumination for backlit letters and advertising panels, ensuring your displays stand out with professional quality.
The specialized 175° lens layout effectively diffuses light to eliminate harsh hotspots and bright centers. This creates a soft, delicate glow that enhances the visual appeal of acrylic surfaces without dark zones.
Featuring a compact standard size, this module allows for flexible splicing to fit signage of various dimensions and irregular shapes. This versatility not only simplifies installation but also significantly boosts production efficiency for sign factories.
Product Parameters:
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| Peime1-MFR061 | SMD2835 | White | 2700~9000K | 12V/24V | 0.36W | 64.8 | 180 | 175° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/50pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 50pcs | White | Constant Voltage | 500 | 5Years Or 50000H | -25-+60 | -25+80 | IP67 | |||||
Product Features:
Stable Constant Current Drive:Ensures consistent brightness and minimizes light decay during long-term use. The stable circuit structure effectively reduces failure risks caused by current fluctuations for a longer lifespan.
Compact and Slim Design:The ultra-slim body fits perfectly into shallow cabinets with limited space. It delivers high brightness output to guarantee clear visibility even under strong ambient light conditions.
Easy Maintenance and Versatility:Individual modules can be replaced separately without dismantling the whole system. Multiple optional IP ratings make it suitable for both indoor dry spaces and outdoor exposed environments.
Led Module Applications:
Retail Store Signage and Logos
Commercial Interior Light Displays
Specialized Business Signage
FAQ:
Q: How to prevent voltage drop?
A: Use thicker wire gauges, adopt multi-point power supplies, and limit single-group wiring distance to ensure stable brightness.
A: Use thicker wire gauges, adopt multi-point power supplies, and limit single-group wiring distance to ensure stable brightness.
Q: Are samples available for testing?
A: Yes, sample orders are welcome for evaluating lighting effects and performance before bulk purchase.
A: Yes, sample orders are welcome for evaluating lighting effects and performance before bulk purchase.
Q: Can waterproof modules be used indoors?
A: Yes, waterproof modules are suitable for indoor use. However, non-waterproof types must be kept away from moisture.
A: Yes, waterproof modules are suitable for indoor use. However, non-waterproof types must be kept away from moisture.
