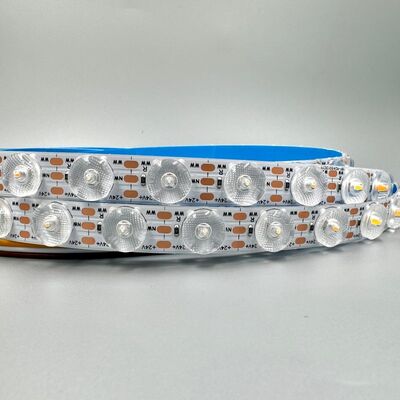

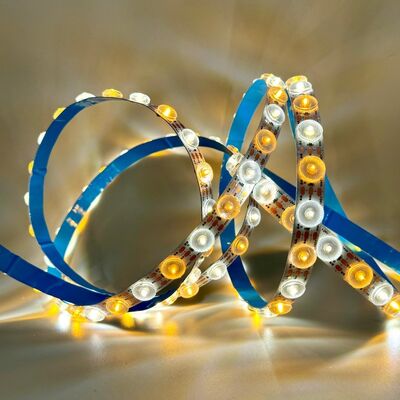

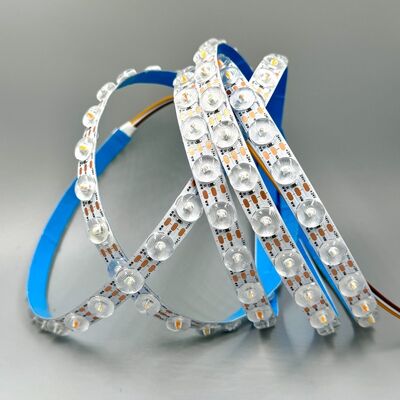

DC24V 10W/m CCT Lens LED Strip for Curved Light Box Backlighting Flexible LED Bar

  • DC24V 10W/m CCT Lens LED Strip for Curved Light Box Backlighting Flexible LED Bar
  • DC24V 10W/m CCT Lens LED Strip for Curved Light Box Backlighting Flexible LED Bar
  • DC24V 10W/m CCT Lens LED Strip for Curved Light Box Backlighting Flexible LED Bar
Place of Origin ShenZhen，China
Brand Name SignLED
Certification CE ROHS
Model Number SN-RRW048
Minimum Order Quantity 1000 metres
Price 1.25-1.4USD/Metre
Packaging Details 250meters/carton
Delivery Time 5-15 working days
Payment Terms T/T,Western Union,Paypal,L/C
Supply Ability 10000meters/day
Product Details
Product Name CCT Lens Flexible LED Bar Led Chip 3030
Warranty 5 Years/ 50000 Hours Voltage 12V/24V
Led Color CCT Dual Color Power 10W/M
Size 1000*12*6.1mm Application Curved Light Box Backlighting
Highlight

DC24V LED Strip

,

10W/m Flexible LED Bar

,

Curved Light Box Backlighting CCT Lens LED Tape
Leave a Message
Product Description

DC24V CCT Lens LED Strip 10W/m for Curved Light Box Backlighting


Engineered with specialized CCT lenses to ensure uniform light distribution and eliminate dark spots, specifically optimized for seamless curved light box backlighting.


Operates on a stable DC24V system with 10W/m power consumption, delivering high-efficiency illumination while maintaining safety for commercial signage applications.


Features an IP33 protection rating designed for enclosed environments, safeguarding the strip against dust and ensuring long-term reliability in protected signage systems.


Product Parameters:


 Model No.     LED  Color   CCT (K) Voltage    Power CRI   Effect (LM/M) PCB Width
SN-RRW048
      3030

CCT  Dual Color

 2100-10000K  12V/24V      10W/M ≥80  1300LM/M  12mm
Customizable
 LED Density Copper Thickness   Drive  Method   Cuttable          Warranty SDCM      Roll   IP Level
48LEDs/M

    3oz

 Constant Voltage   20.8mm  5Years Or 50000H     ≤5   10m/roll   IP33


Product Features:


High-Density Optical Lens Design:Equipped with specialized lenses to focus light at wide angles, ensuring uniform illumination without dark spots in deep light boxes.


Energy-Efficient DC24V Operation:Runs on a safe low-voltage system with optimized power consumption (10W/m), providing stable brightness while reducing energy costs.


Versatile Mounting Options:Features strong 3M adhesive backing and optional mounting clips, allowing for quick and secure installation on various curved surfaces.


DC24V 10W/m CCT Lens LED Strip for Curved Light Box Backlighting Flexible LED Bar


Applications:


Curved Architectural Signage


Premium Retail Branding


Custom Indoor Advertising


DC24V 10W/m CCT Lens LED Strip for Curved Light Box Backlighting Flexible LED Bar


  1. FAQ:

Q: Can this LED strip be cut to size?
A: Yes, the strip features precise cutting marks every 50mm or 100mm (depending on the model), allowing you to customize the length to fit your specific light box dimensions perfectly.

Q: Is a special power supply required for this strip?
A: Yes, since this is a DC24V low-voltage product, you must use a compatible 24V DC power supply driver. Ensure the driver's wattage exceeds the total power of your installed strip length.

Q: What is the recommended installation method?
    A: The strip comes with strong self-adhesive backing (3M tape) for easy mounting on clean, dry surfaces. For heavy-duty applications       or curved surfaces, we also recommend using additional mounting clips for extra security.
