AC220V Edge Lighting Module 2W IP67 Rooftop Big Signage
Product Details
| Product Name | Edge LED Module | Led Chip | 3030 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 50pcs Chain |
| Led Color | 2700k-9000k. Other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 45*35*14mm | Application | 8–20cm Depth Light Box Systems |
| Highlight | LED Edge Light Module 2W,AC220V LED Module For Advertising Boards,High Voltage LED Sign Module |
||
Product Description

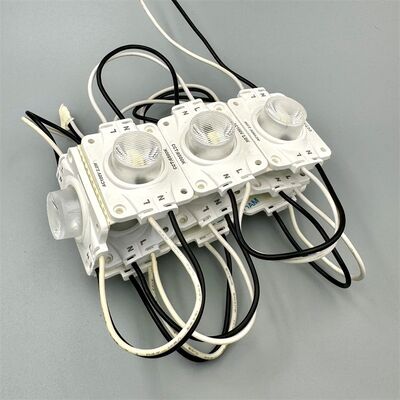

AC220V Edge Lighting Module 2W IP67 Rooftop Big Signage
• High voltage Edge Lit LED Module designed for AC110V and AC220V applications, providing efficient side-emitting illumination for signage and backlighting projects.
• Features slim edge lighting structure with uniform light distribution, suitable for thin light boxes, cabinets, and advertising applications.
• Direct AC input design helps simplify installation while delivering stable brightness performance for commercial lighting projects.
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| ACBOX2-HFR039 | 3030 | White | 2700~9000K | 110V/220V | 2W | 200 | 100 | 15*50° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/50pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 50pcs | White | Constant Voltage | 937 | 5Years Or 50000H | -25-+60 | -25+80 | IP67 | |||||
Product Features
• Supports AC110V and AC220V direct voltage operation without traditional low voltage power supply.
• Edge lighting design provides smooth and even illumination with reduced shadow areas.
• Slim structure allows flexible installation in narrow spaces and compact lighting applications.
Led Module Applications
- Standard-depth light box signage (≥8cm)
- Edge lighting for light box advertising displays
- Single-sided deep-frame light box displays
FAQ
Q: Is this LED Edge Light Unit suitable for outdoor applications?
A: With an IP67 protection rating, the unit is designed for applications that require resistance against dust and water exposure.
Q: What makes this module suitable for advertising boards?
A: Its compact lighting design and stable illumination performance make it suitable for various advertising board lighting projects.
