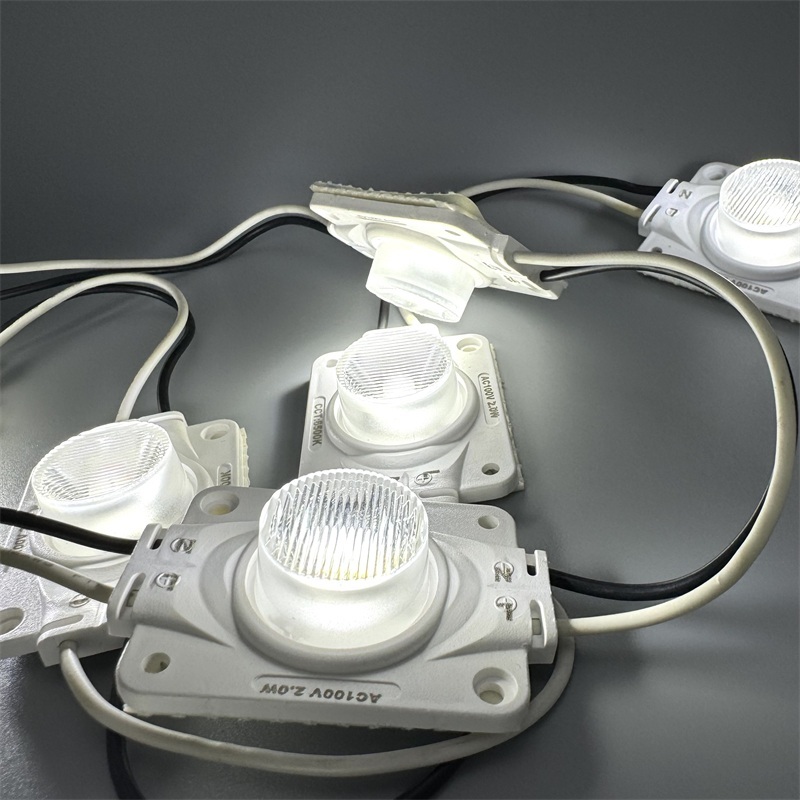

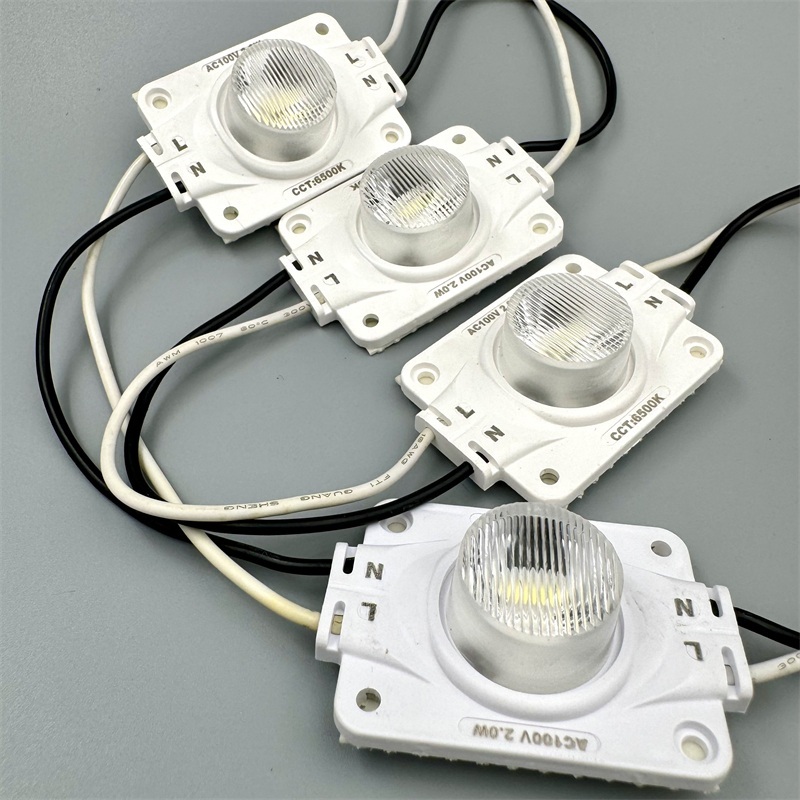

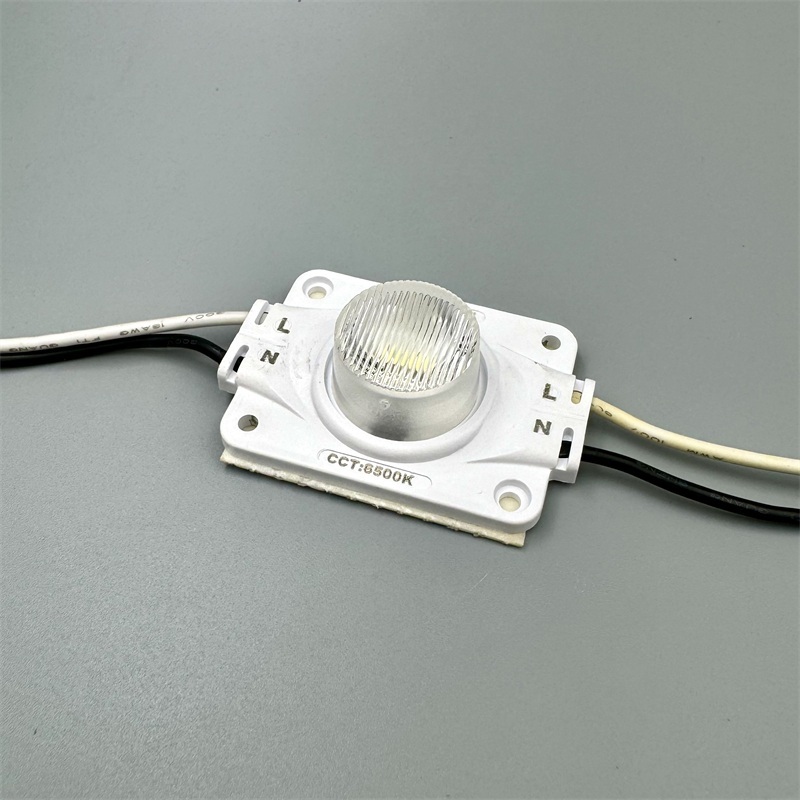

High Brightness Edge LED Module AC220V 2700k-9000k Edge Lighting Modules
Product Details
| Product Name | Edge LED Module | Led Chip | 3030 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 50pcs Chain |
| Led Color | 2700k-9000k. Other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 45*35*14mm | Application | 8–20cm Depth Light Box Systems |
| Highlight | AC220V LED Sign Module,IP67 Edge Lighting Module,High Voltage Sign LED Module |
||
Product Description
High Brightness Edge LED Module AC220V 2700k-9000k Edge Lighting Modules
- Integrated AC220V module design for direct mains operation
- Precision optical lens improves brightness consistency
- Waterproof IP67 structure for various installation environments
- Provides reliable illumination for medium-depth sign applications
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| ACBOX2-HFR039 | 3030 | White | 2700~9000K | 110V/220V | 2W | 200 | 100 | 15*50° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/50pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 50pcs | White | Constant Voltage | 937 | 5Years Or 50000H | -25-+60 | -25+80 | IP67 | |||||
Product Features
- Durable copper cable design for continuous operation
- Aluminum substrate PCB enhances heat dissipation
- Special beam angle controls light spreading performance
- Flame-retardant and UV-resistant protective shell
- Pre-installed adhesive tape allows fast mounting
Led Module Applications
- LED advertising sign boxes
- Storefront illuminated signs
- Indoor and outdoor signage projects
FAQ
Q: What applications can use this Edge Lighting Module?
A: It is suitable for advertising signs, illuminated logo projects, light box applications, and other edge lighting installations.
Q: What should be considered when installing this LED Sign Module?
A: Installation should consider the required voltage, lighting structure, spacing arrangement, and the design requirements of the application.
