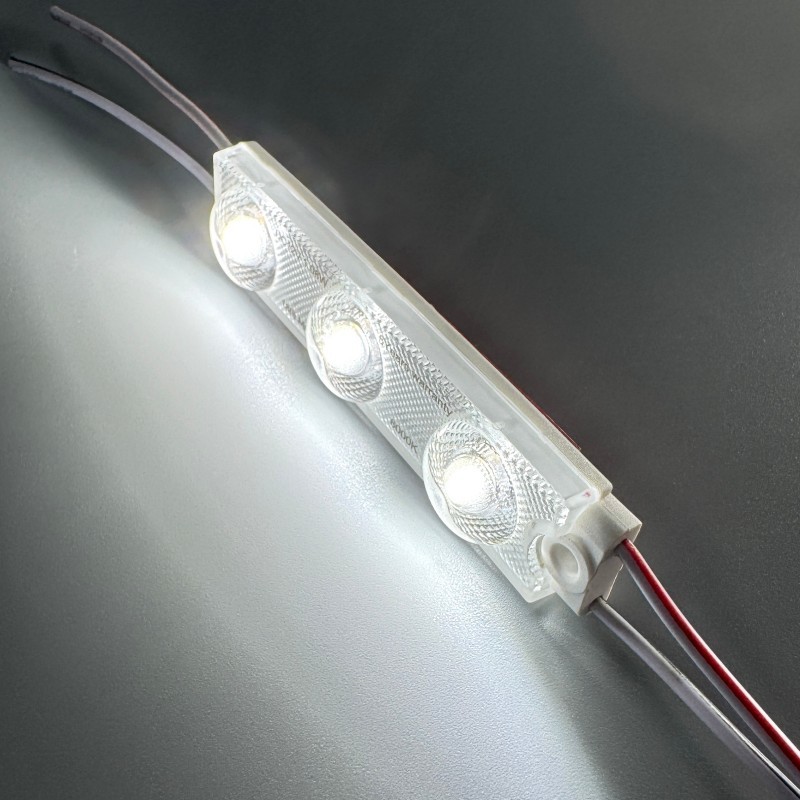

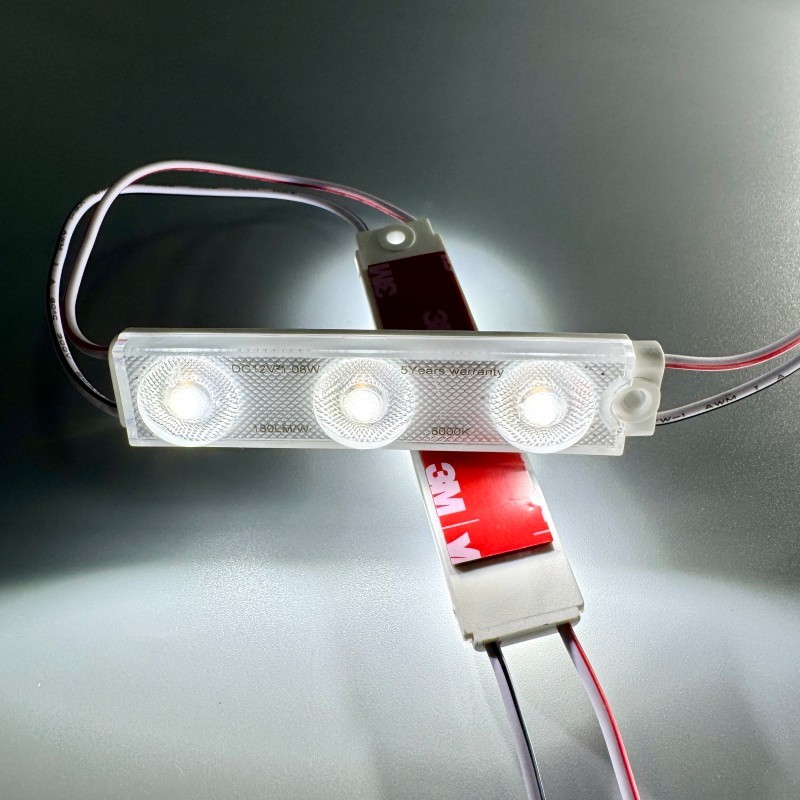

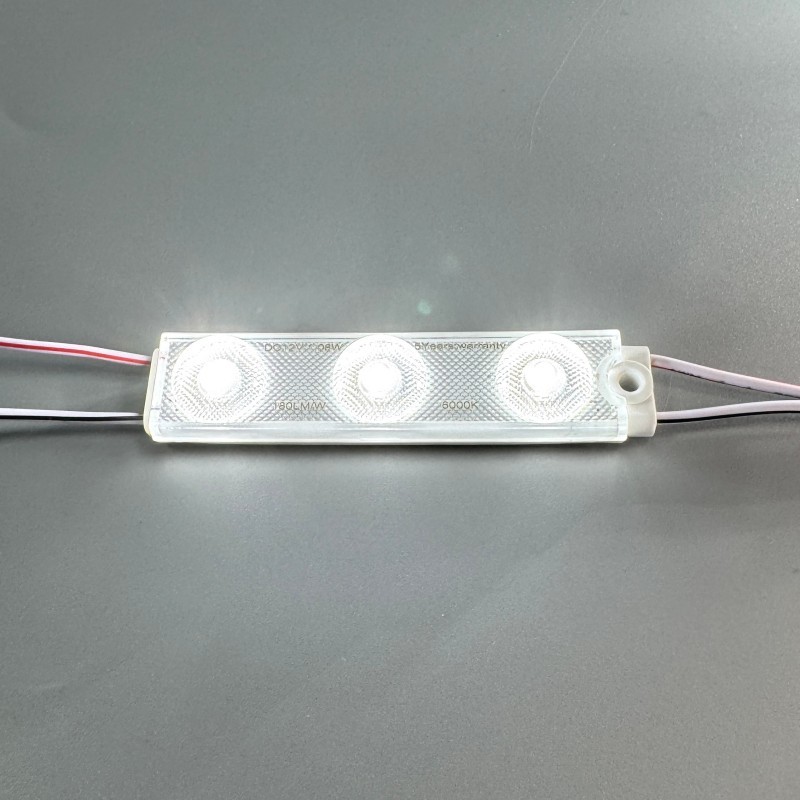

High CRI LED Backlight Module 12V Uniform Illumination For Visual Enhancement
Product Details
| Product Name | LED Module | Led Chip | SMD2835 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 30pcs Chain |
| Led Color | White 2700k-9000k, Other Colors. | Brand Logo | Free Cost Logo |
| Module Size | 75*16*10mm | Application | Personalized Lettering Lighting |
| Highlight | High CRI LED Backlight Module,12V Visual Enhancement LED Module,Uniform Illumination LED Module |
||
Product Description
High CRI Backlight Module 12V for Visual Enhancement
Highly reliable LED backlight module developed for continuous-operation commercial signage.
Optimized light projection creates smooth illumination and reduces glaring bright areas on acrylic panels.
Solid construction withstands routine handling during sign fabrication without easy damage.
Product Parameters
| Model No. | LED | color | CCT (K) | voltage | power | LM | Effect (LM/W) | Angle | ||||
| SINO3-MFR033 | SMD2835 | White | 2700~9000K | 12V/24V | 1.08W | 195 | 180 | 170° | ||||
| other colors | ||||||||||||
| Connection Qty | Shell color | Drive method | Weight (g/30pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 30pcs | White | Constant voltage/current | 300 | 5Years Or 50000H | -25-+60 | -25+80 | IP67 | |||||
Product Features
Excellent Brightness Stability: Brightness remains consistent after long-term continuous lighting.
Reasonable Circuit Layout: Lower risk of short circuit caused by improper wiring operation.
Wide Installation Compatibility: Adaptable to standard letter shells and regular lightbox frames.
Led Module Applications
Auto Repair Shop Illuminated Logos
Laundry Chain Store Signboards
Dessert Shop Lighted Letter Signs
FAQ
Q: How long can the modules run continuously per day?
A: Designed for long-time operation on condition of matched power supply and good ventilation.
Q: Do I need to separate positive and negative wires clearly?
A: Polarity cannot be reversed; wrong connection will lead to modules failing to light up.
Q: What causes modules to flash intermittently?
A: Insufficient power load, loose terminals or unstable power output are common reasons.
