SPI App Smart LED Controller SP608E Music Sync RF Remote Control Led Pixel Controller
| Place of Origin | ShenZhen, China |
|---|---|
| Brand Name | SignLED |
| Certification | CE ROHS |
| Model Number | SP-608E |
| Document | SP608E Bluetooth & RF Remot...er.pdf |
| Minimum Order Quantity | 10PCS |
| Price | 26.5-29.5USD per piece |
| Packaging Details | 100pcs/carton |
| Delivery Time | 3-5 working days |
| Payment Terms | L/C,T/T,Western Union,PayPal |
| Supply Ability | 1000pcs per day |
Product Details
| Product Name | App Controller SP608E | Voltage | DC5V-24V |
|---|---|---|---|
| Pixel Number | 4800 Pixels | IC Chip | WS2811 WS2812 WS2818 SPI Addressable |
| Bluetooth | Yes | App/Remote | Yes |
| Music Control | Yes | Warranty | 2 Years |
| Highlight | SPI App LED Controller,RF Remote Control Led Pixel Controller |
||
Product Description
SPI App controller SP608E music sync remote led pixel controller
Features:

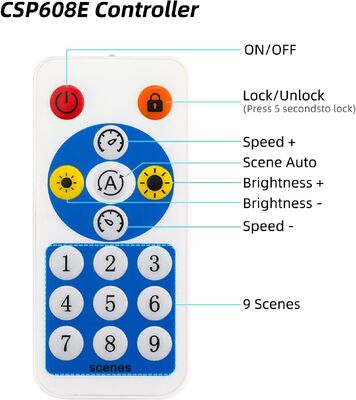

- Supports both mobile APP and RF remote control;
- Support the output of 8 different lighting effects, suitable for a variety of occasions to meet the different needs of customers;
- Supports common single-wire LED driver ICs in the market;
- Build in music and non-music effects, multi-parameter adjustable;
- Built in grouping control function, supporting any combination control of 8 channels;
- Built in trigger function, supporting the customization of trigger effect parameters;
- DC5V~24V wide range ing voltage, preventing reverse connection of power supply;
- With Power down save setting parameter function.
Related Products
| SP110E | SP105E | SP601E | SP602E | SP107E | SP108E | SP608E | |
| Operation Difficult | 1stars | 2stars | 1stars | 1stars | 2stars | 3stars | 1stars |
| Controll method | APP-Blue tooth | APP-Blue tooth | APP-Blue tooth | APP-Blue tooth | APP-Blue tooth | APP-WIFI | APP-Blue tooth |
| Pixels Quality | 1024 | 2048(1200) | 1200(2*600) | 2400(4*600) | 960 | 2048(1200) | 4800(8*600) |
| Support IC | Smart ic chip | Smart ic chip | Smart ic chip | Smart ic chip | Smart ic chip | Smart ic chip | Smart ic chip |
| Music Mode | No | No | Yes | Yes | Yes | No | No |
| Connector | 3Pin | 3Pin/4Pin | 3Pin | 3Pin/4Pin | 3Pin/4Pin | 3Pin/4Pin | 3Pin/4Pin |
| Voltage Input | DC5-24V | DC5-24V | DC5-24V | DC5-24V | DC5-24V | DC5-24V | DC5-24V |
| Group control | No | No | No | Yes | No | Yes | No |
| Lighting Effect | 120 | 200 | 12+24 | 12+28 | 30+18+180 | 188 | 40+9 |
Full color Pixels are digitally-controllable lights you can set to any color, or animate.
Each RGB LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.
They are typically used to make outdoor signs. Compared to our other 20mm LED dots.
These are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.
The pixels are connected by a 3-conductor cable. Red is +5V(or +12V), white is Ground, green is Data and Data is shifted
down from one pixel to the next so that you can easily cut the strand or attach more onto the end.
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades).
The pixels must be clocked by a microcontroller.
The pixels use 8mm diffused RGB LEDs. with brightness of about 300 mcd per individual r/g/b LED.
