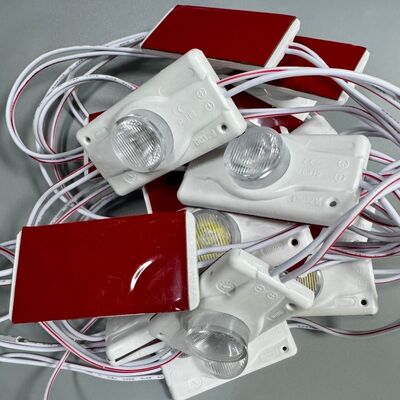

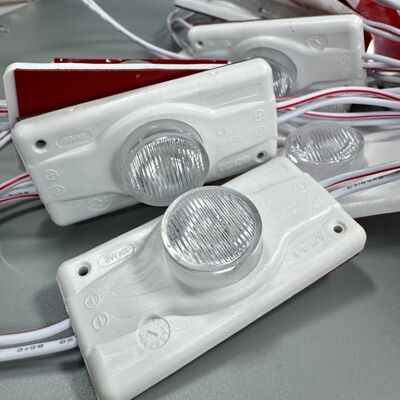

OEM Edge Lit LED Module 6000K 15×45 Degrees Side Emitting Module For Signs
Product Details
| Product Name | Edge Led Module | Led Chip | 3030 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs Chain |
| Led Color | White 2700k-9000k | Brand Logo | Free Cost Logo |
| Module Size | 74*20*9.5mm | Application | Edge-lit Advertising Light Boxes |
| Highlight | 15×45 Degree Side Emitting Module,Edge Lighting Sign Module 6000K,OEM Edge Lit LED Module |
||
Product Description
OEM Edge Lit LED Module 6000K 15×45 Degrees Side Emitting Module For Signs
• DC24V Edge Lighting LED Backlight Module provides efficient side illumination for thin profile lighting applications.
• Designed with compact construction to achieve even brightness in narrow installation areas.
• Ideal for professional sign makers requiring reliable low voltage backlighting components.
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| Box3Max-MFK042 | 3030 | White | 2700~9000K | 12V/24V | 3W | 300 | 100 | 15*45° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant Voltage | 260 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Product Features
• Low voltage design improves installation safety and system flexibility.
• Slim edge illumination structure fits space-limited projects.
• Optimized light distribution helps reduce dark areas and uneven brightness.
Led Module Applications
- Edge-lit advertising light boxes
- Double-sided light box signage systems (≥8cm depth)
- Outdoor advertising light box displays
- Indoor commercial light box advertising
FAQ
Q: Is this module suitable for commercial signage?
A: Yes, it is widely used for advertising signs and commercial lighting projects.
Q: Can the module work with DC12V power?
A: Models are available for DC12V or DC24V according to project requirements.
Q: What makes it different from normal backlight modules?
A: The edge lit design allows a thinner structure while maintaining uniform lighting.
