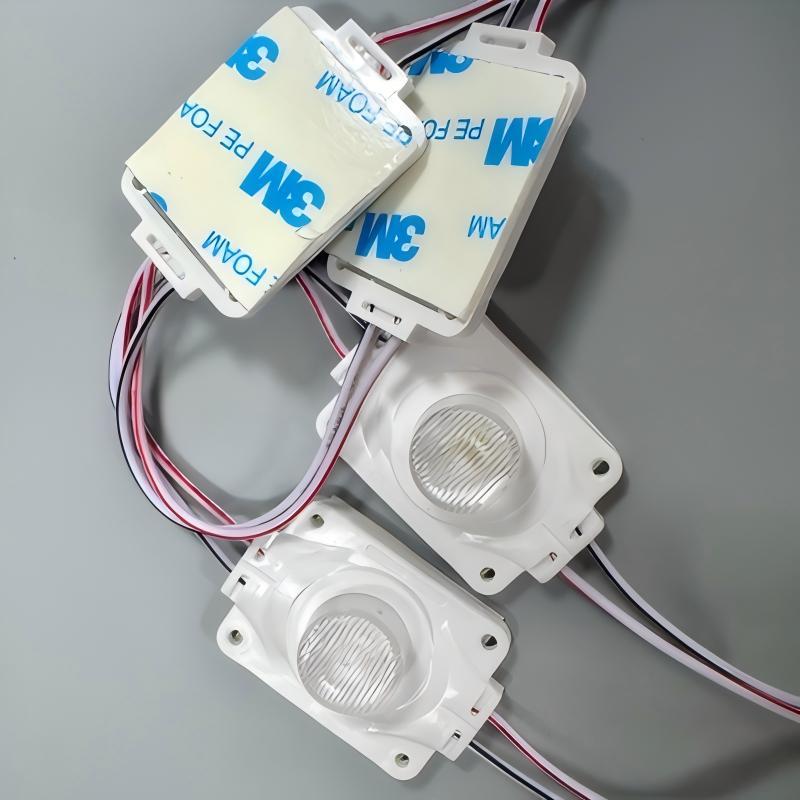

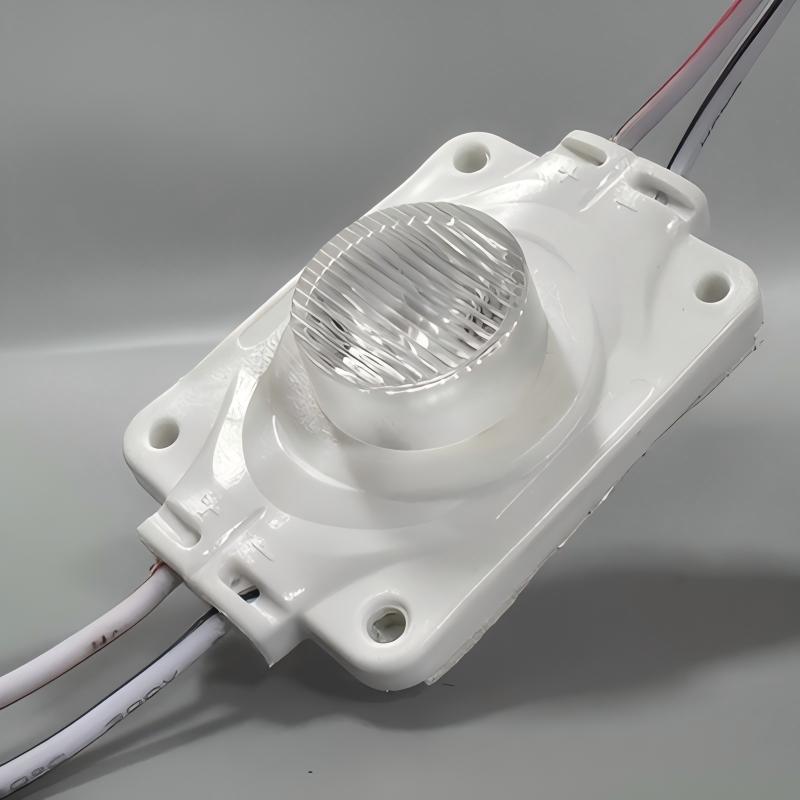

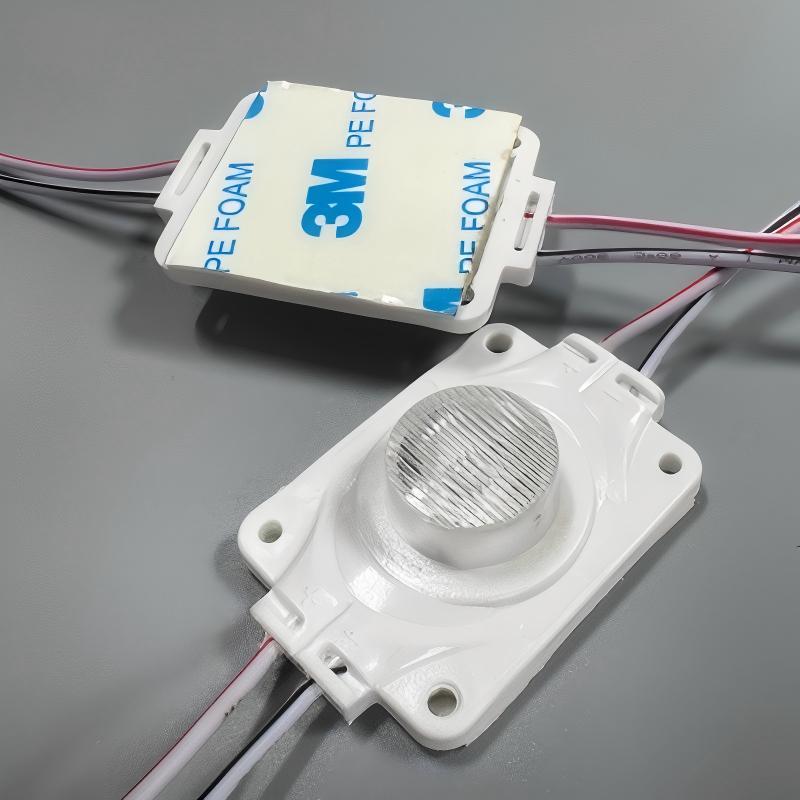

12V 3030 Chip LED Edge Lighting Module IP65 Rating For Sign Lighting
Product Details
| Product Name | Edge LED Module | Led Chip | 3030 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs Chain |
| Led Color | White 2700k-9000k | Brand Logo | Free Cost Logo |
| Module Size | 45*35*14mm | Application | Sign Lighting |
| Highlight | DC12V LED Edge Lighting Module,IP65 LED Module for Sign,Edge Lit Sign Lighting Module |
||
Product Description
12V LED Edge Lighting Module IP65 for Sign Lighting
- Side light injection technology helps create smooth panel brightness
- Low voltage DC12V design supports efficient lighting integration
- Suitable for transparent and semi-transparent display materials
- Stable illumination performance for commercial display projects
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| Box1.5-MFF092 | 3030 | White | 2700~9000K | 12V/24V | 1.5W | 165 | 110 | 15*45° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant Voltage | 325 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Product Features
- Low power consumption design supports continuous operation
- High conductivity connection improves electrical reliability
- Optical distribution structure enhances panel light coverage
- Protective casing improves environmental resistance
- Compact module size allows flexible layout arrangement
Led Module Applications
- Transparent display lighting
- Edge illumination systems
- Commercial display applications
FAQ
Q: Is this module easy to install?
A: The compact module structure allows flexible installation in different display designs.
Q: What applications can use this product?
A: It can be used for display panels, advertising signs, and decorative lighting.
