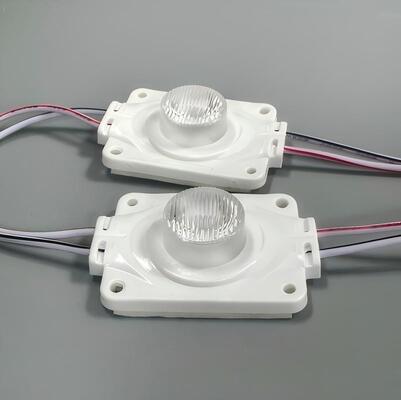

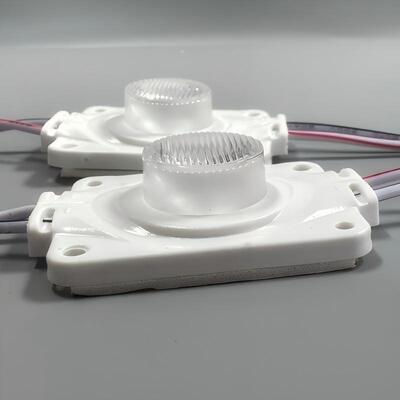

1.5W Edge Module For LED Light Boxes , 165LM Signage LED Module IP65 Rated
Product Details
| Product Name | Edge LED Module | Led Chip | 3030 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs Chain |
| Led Color | White 2700k-9000k | Brand Logo | Free Cost Logo |
| Module Size | 45*35*14mm | Application | LED Light Boxes |
| Highlight | Edge Module For LED Light Boxes,IP65 15x45 Degree LED Module,DC12V LED Module for Light Box |
||
Product Description
1.5W Edge Module 165LM IP65 15×45° for LED Light Boxes
- Edge lighting solution developed for illuminated display structures
- DC12V power supply ensures convenient connection with LED systems
- 15*45° optical design improves light spreading inside panels
- IP65 rated construction supports long-term lighting applications
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| Box1.5-MFF092 | 3030 | White | 2700~9000K | 12V/24V | 1.5W | 165 | 110 | 15*45° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant Voltage | 325 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Product Features
- Efficient LED performance provides stable brightness output
- Heat dissipation structure improves product reliability
- Lens design controls light direction and distribution
- Protective material improves durability
- Easy installation design supports different display structures
Led Module Applications
- Edge-lit advertising displays
- Light box panels
- Acrylic advertising boards
FAQ
Q: What is the advantage of the 15×45° optical design?
A: The directional beam design helps improve edge lighting efficiency for light box applications.
Q: What type of light boxes can use this module?
A: It is suitable for edge-lit signage.
Q: What voltage does it operate on?
A: This module uses a DC12V constant voltage power supply.
