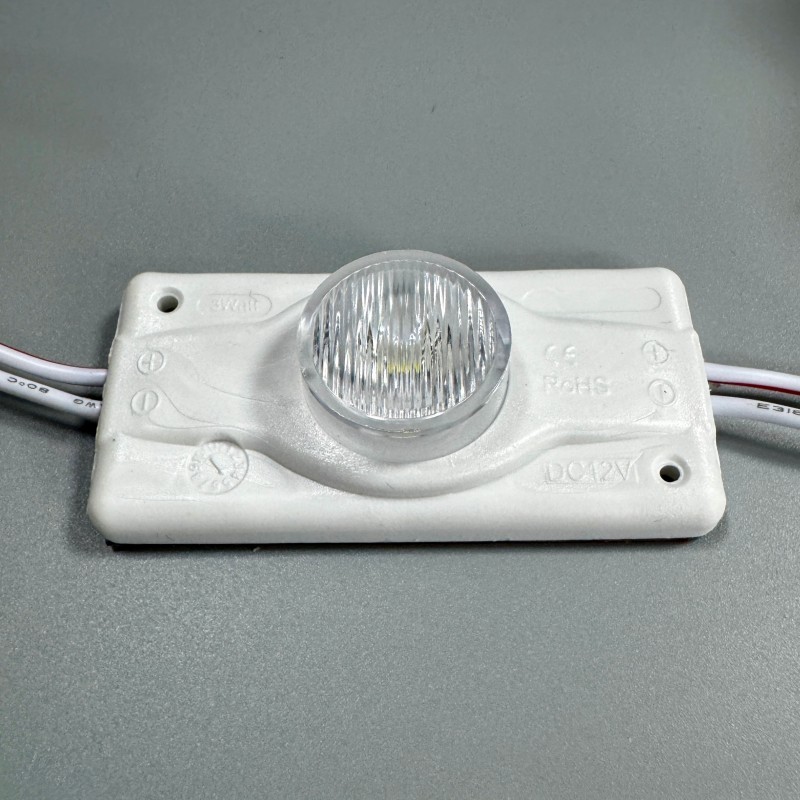

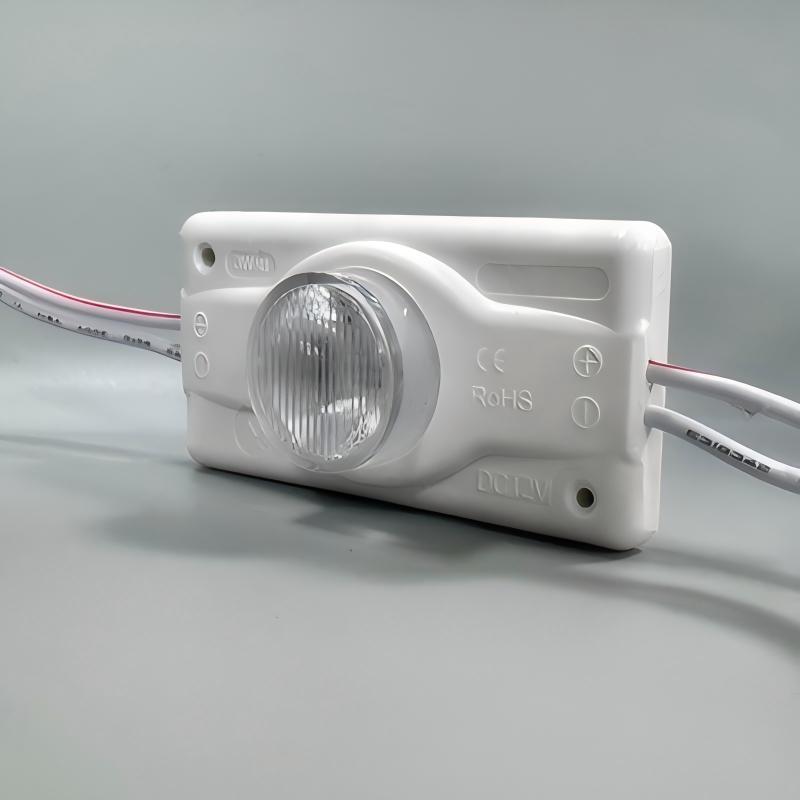

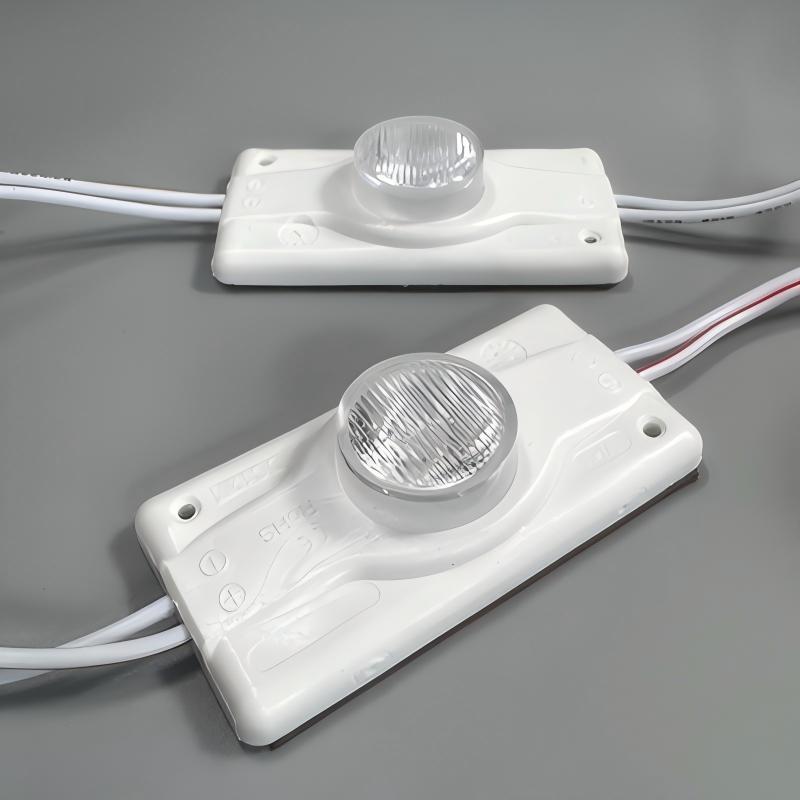

Light Box LED Module 3W 12V Channel Letter Led Module Compact Structure
Product Details
| Product Name | Edge Led Module | Led Chip | 3030 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs Chain |
| Led Color | White 2700k-9000k | Brand Logo | Free Cost Logo |
| Module Size | 74*20*9.5mm | Application | Advertising Displays |
| Highlight | 3W Light Box LED Module,IP65 Channel Letter Led Module,1IP65 Waterproof Light Box Modules |
||
Product Description
Light Box LED Module 3W 12V Channel Letter Led Module Compact Structure
- Optimized for advertising light boxes requiring side illumination
- DC12V operation allows flexible connection with LED power systems
- Compact module structure fits various display cabinet designs
- IP65 waterproof rating supports reliable long-term operation
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| Box3Max-MFK042 | 3030 | White | 2700~9000K | 12V/24V | 3W | 300 | 100 | 15*45° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant Voltage | 260 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Product Features
- Stable current performance for continuous lighting operation
- Efficient aluminum substrate enhances thermal management
- Wide optical control creates smooth panel illumination
- UV-resistant casing improves product durability
- Quick installation with pre-attached adhesive tape
Led Module Applications
- Edge-lit advertising light boxes
- Edge-lit display frames
- Large borderless letters
FAQ
Q: Can this module maintain consistent brightness during operation?
A: Yes, the module is designed to provide stable light output for continuous lighting applications.
Q: What installation factors should be considered for edge emitting modules?
A: Proper module spacing, mounting position, and light direction should be considered to achieve the desired illumination result.
