SMD3535 Edge Lighting Module 3W Led Side Light Module For Light Box
Product Details
| Module Name | 3W LED Edge Module | Led Chip | SMD3535 1 Piece |
|---|---|---|---|
| Beam Angle | 15*45 Degrees | Module Size | 74*20*9.5mm |
| Luminous Flux | 300 Lumens | Power | 12V 3W |
| Application | Double Sided Led Light Box | Warranty | 5 Years Warranty |
| Highlight | SMD3535 Edge Lighting Module,3W Side Light LED Module,12V LED Module for Light Box |
||
Product Description
SMD3535 edge lighting 3W led side light module for light box
- Professional LED side light module for edge-lit signage systems.
- High-intensity illumination creates vibrant and attractive displays.
- Reliable performance minimizes maintenance and replacement costs.
- Efficient light transmission improves overall display brightness.
- Engineered for commercial light boxes and advertising applications.
Parameters of led edge light modules
|
Model No. |
LED |
color |
CCT (K) |
voltage |
power |
LM |
Effect |
Angle |
||||
|
MFK042 |
SMD3535 |
White |
2700~6500K |
12V |
3.0W |
300 |
100 |
15*45° |
||||
|
7000~10000K |
||||||||||||
|
Connection Qty |
Shell color |
Drive method |
Weight (g/20pcs) |
Warranty |
W T(℃) |
S T(℃) |
IP Level |
|||||
|
20pcs |
White |
Constant voltage |
550 |
5Years |
-25-+60 |
-25-+80 |
IP65 |
|||||

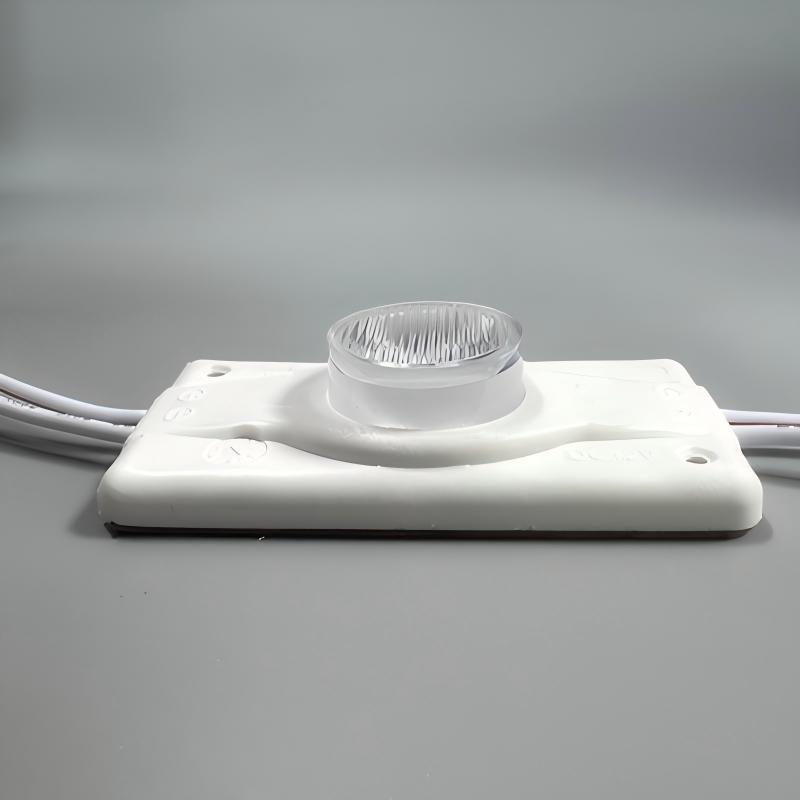

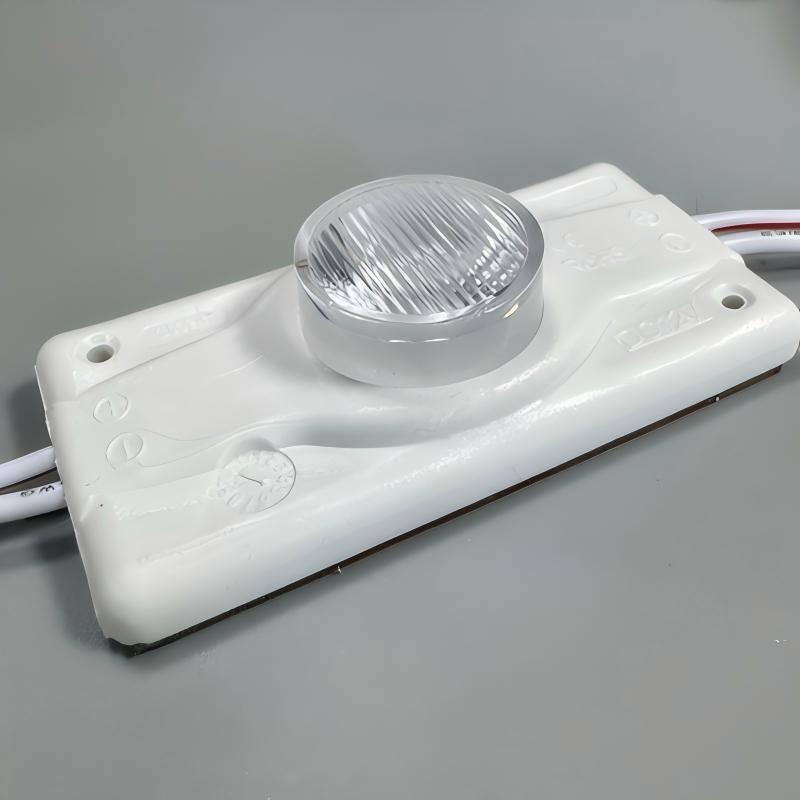

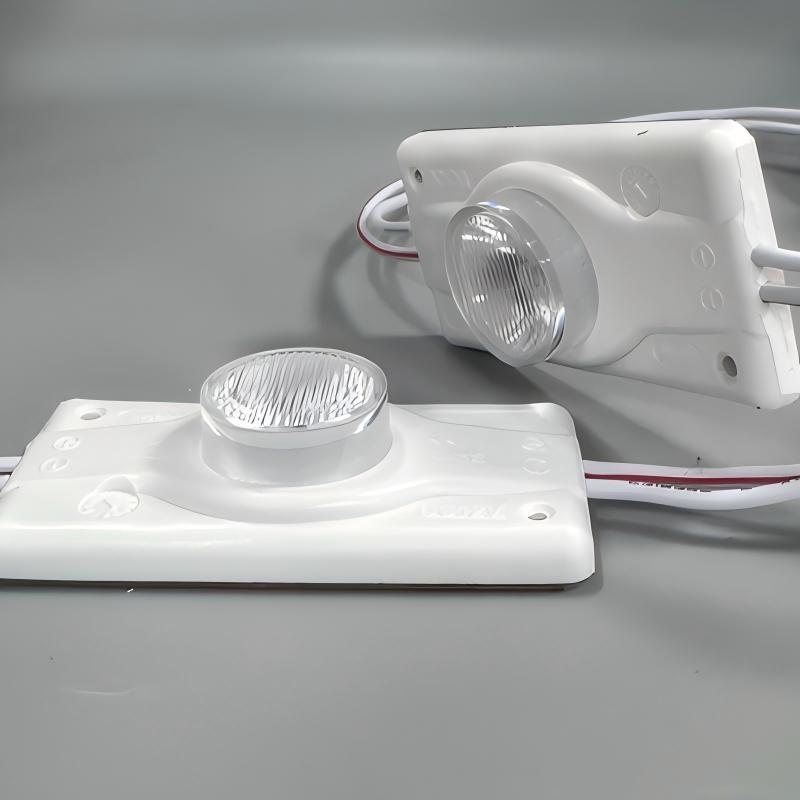

Detailed Photos for 3w led edge module
3w led edge light module with high quality SMD3535 led chip, AWG18# UL wire and 3M back tape. 5 years warranty
Applications
Edge light modules special asymmetric beam angle 15*45 degrees, efficient edge lighting with wider light coverage, making it ideal for double sided light boxes.
Our service
SignLED specialized in advertising signs lighting sources for years.
1.For all your inquiries led edge module lights, we will reply you in detail within 24 hours.
2. We have well-trained and passionate sales & after-sale services who can speak fluent English language.
3. We offer OEM services. Like print your own logo on product or customize the retail box packing ,etc.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
