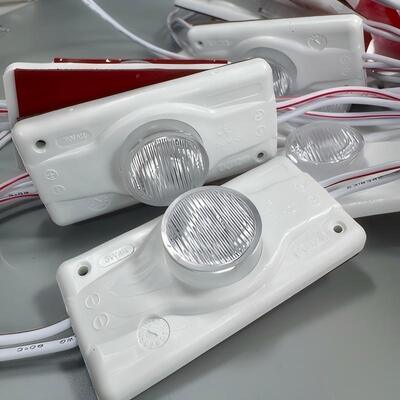

DC12V Low Voltage Channel Letter Led Module 3W IP65 For Light Box Illumination
Product Details
| Product Name | Edge Led Module | Led Chip | 3030 |
|---|---|---|---|
| Warranty | 5 Years/ 50000 Hours | Led Chain | 20pcs Chain |
| Led Color | White 2700k-9000k | Brand Logo | Free Cost Logo |
| Module Size | 74*20*9.5mm | Application | Light Box Illumination |
| Highlight | 3W Letter Lighting Module,Low Voltage Channel Letter Led Module,3W IP65 Light Box Module |
||
Product Description
Letter Lighting Modules 3W IP65 for Light Box Illumination
• Edge Lit LED Module with optical lens design provides wider light distribution and improved illumination coverage for sign lighting applications.
• Designed for DC12V and DC24V systems, delivering stable brightness performance for channel letters and advertising signs.
• The side emitting structure helps achieve effective light projection for professional illuminated signage projects.
Product Parameters
| Model No. | LED | Color | CCT (K) | Voltage | Power | LM | Effect (LM/W) | Angle | ||||
| Box3Max-MFK042 | 3030 | White | 2700~9000K | 12V/24V | 3W | 300 | 100 | 15*45° | ||||
| Other Colors | ||||||||||||
| Connection Qty | Shell color | Drive Method | Weight (g/20pcs) | Warranty | W T(℃) | ST(℃) | IP Level | |||||
| 20pcs | White | Constant Voltage | 260 | 5Years Or 50000H | -25-+60 | -25+80 | IP65 | |||||
Product Features
• Optical lens design enhances beam control and improves lighting efficiency for sign applications.
• Edge emitting structure provides wider illumination coverage with consistent light output.
• DC12V/DC24V low voltage operation supports flexible installation for various signage projects.
Led Module Applications
• Channel letter signs and 3D illuminated letters
• Advertising signs and commercial signage
• Retail store signs and customized lighting projects
FAQ
Q: What is an Edge Lit LED Module used for?
A: It is mainly used for illuminated signs, channel letters, and advertising lighting applications requiring wide light coverage.
Q: What is the advantage of the optical lens design?
A: The lens helps control light distribution, improve projection distance, and increase illumination coverage.
Q: What voltage options are available for this module?
A: This Edge Lit LED Module is available in DC12V and DC24V versions according to project requirements.
